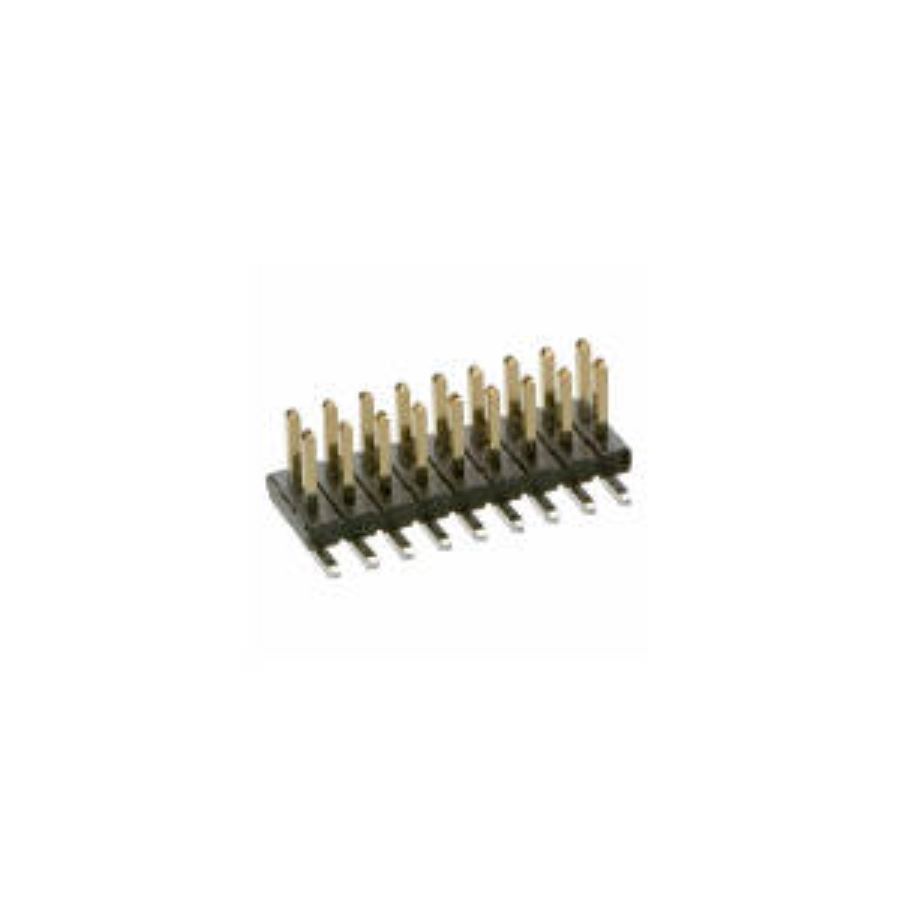

M50-3600342
Manufacturer:
Harwin
Mfr.Part #:
M50-3600342
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:6 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 3.81 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 3.41 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 1.27 mm |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
Stock: 4255
Distributors
pcbx
pcbxUnit Price$0.85115
Ext.Price$0.85115
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.85115 | $0.85115 |
| 10 | $0.72208 | $7.22080 |
| 25 | $0.68386 | $17.09650 |
| 50 | $0.64766 | $32.38300 |
| 100 | $0.61337 | $61.33700 |
| 300 | $0.57948 | $173.84400 |
| 500 | $0.54746 | $273.73000 |
| 1000 | $0.51929 | $519.29000 |
| 3000 | $0.49257 | $1477.71000 |
| 5000 | $0.46723 | $2336.15000 |
| 10000 | $0.44319 | $4431.90000 |
