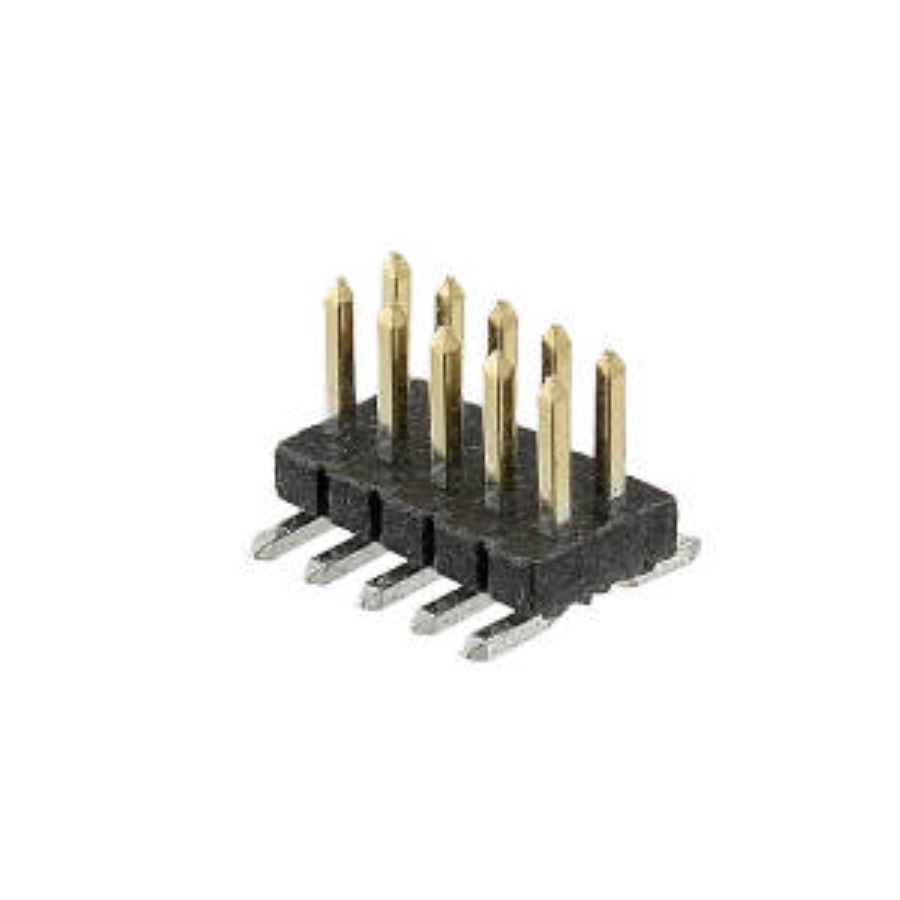

M50-3600542
Manufacturer:
Harwin
Mfr.Part #:
M50-3600542
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:10 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Height | 5.13 mm |
| Material | Thermoplastic |
| Packaging | Bulk |
| Depth | 3.41 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Insulation Material | Thermoplastic |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Contact Mating Length | 2.9972 mm |
Stock: 3225
Distributors
pcbx
pcbxUnit Price$0.86325
Ext.Price$0.86325
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.86325 | $0.86325 |
| 10 | $0.73456 | $7.34560 |
| 25 | $0.69567 | $17.39175 |
| 50 | $0.65883 | $32.94150 |
| 100 | $0.62394 | $62.39400 |
| 300 | $0.58948 | $176.84400 |
| 500 | $0.55693 | $278.46500 |
| 1000 | $0.53035 | $530.35000 |
| 3000 | $0.50109 | $1503.27000 |
| 5000 | $0.47344 | $2367.20000 |
| 10000 | $0.45086 | $4508.60000 |
