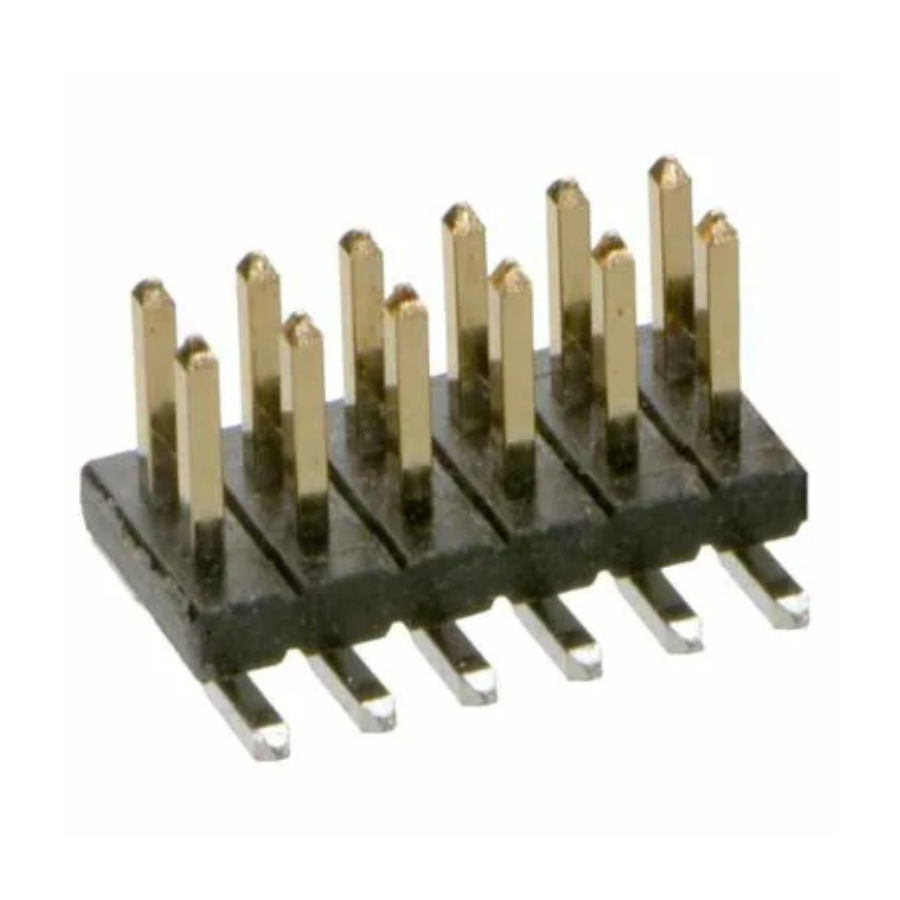

M50-3602042
Manufacturer:
Harwin
Mfr.Part #:
M50-3602042
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:40 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 25.4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Material | Thermoplastic |
| Packaging | Bulk |
| Depth | 3.41 mm |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 40 |
| Connector Type | Header |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Contact Mating Length | 2.9972 mm |
Stock: 177
Distributors
pcbx
pcbxUnit Price$2.61609
Ext.Price$2.61609
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.61609 | $2.61609 |
| 10 | $2.37841 | $23.78410 |
| 25 | $2.25274 | $56.31850 |
| 50 | $2.20316 | $110.15800 |
| 100 | $2.09629 | $209.62900 |
| 300 | $1.88366 | $565.09800 |
| 500 | $1.69260 | $846.30000 |
| 1000 | $1.52092 | $1520.92000 |
