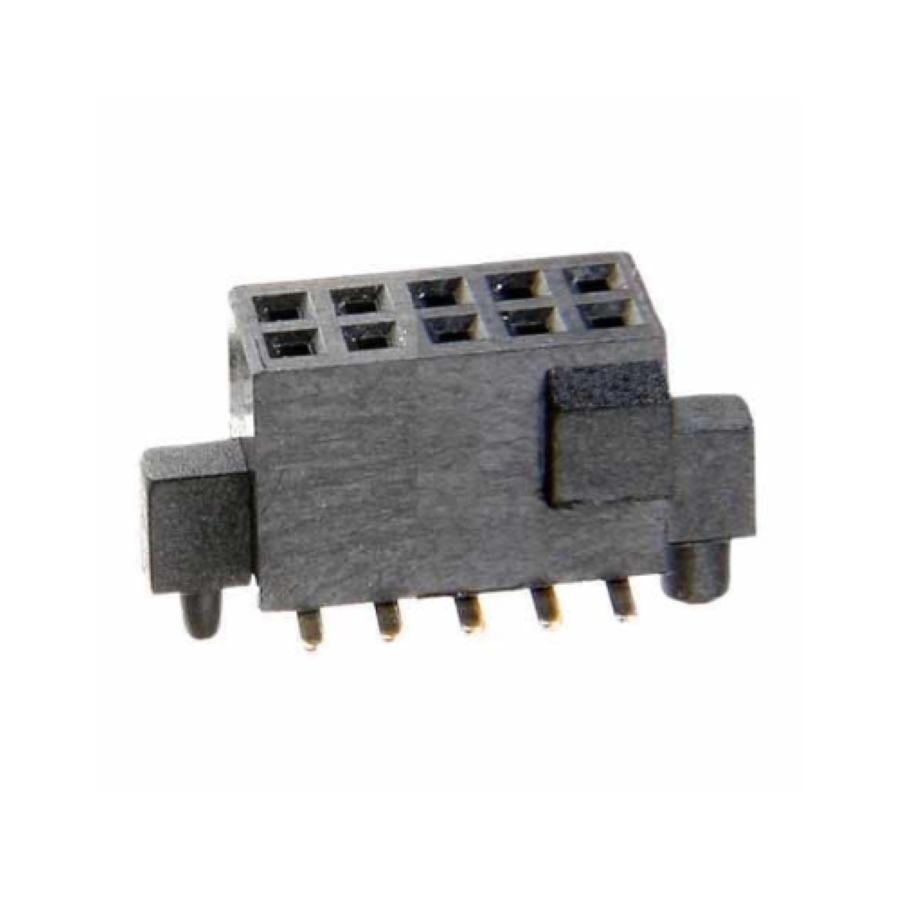

M50-4300545
Manufacturer:
Harwin
Mfr.Part #:
M50-4300545
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle Number of Positions:10 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 8.23 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 150 V |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 3.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Weight | 181.011705 mg |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 10 |
| Connector Type | Receptacle |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 74
Distributors
pcbx
pcbxUnit Price$1.35763
Ext.Price$1.35763
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.35763 | $1.35763 |
| 10 | $1.27043 | $12.70430 |
| 25 | $1.25162 | $31.29050 |
| 50 | $1.14233 | $57.11650 |
| 100 | $1.04259 | $104.25900 |
| 300 | $0.95154 | $285.46200 |
| 500 | $0.83837 | $419.18500 |
| 1000 | $0.73866 | $738.66000 |
