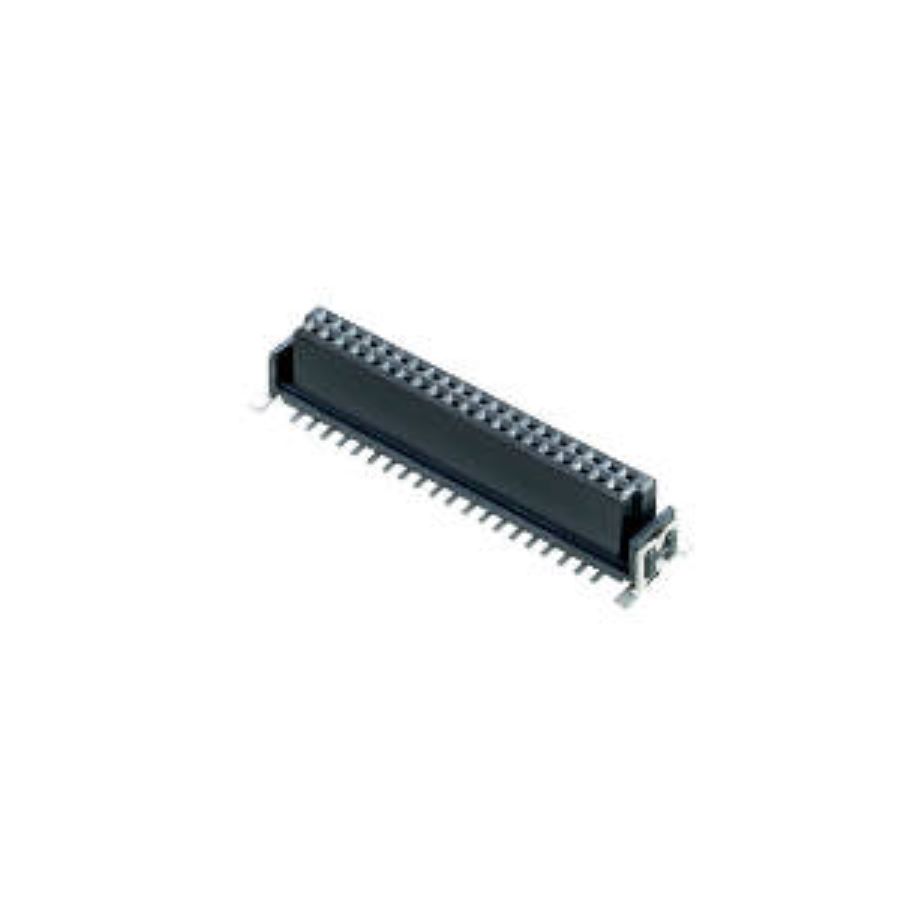

M55-6004042R
Manufacturer:
Harwin
Mfr.Part #:
M55-6004042R
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:40 Number of Rows:2 Row Spacing:1.27 mm Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 100 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1.2 A |
| Gender | Receptacle |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Stack Height | 6.25 mm |
| Mounting Angle | Vertical |
Stock: 1240
Distributors
pcbx
pcbxUnit Price$2.24077
Ext.Price$2.24077
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.24077 | $2.24077 |
| 10 | $1.90906 | $19.09060 |
| 25 | $1.80774 | $45.19350 |
| 50 | $1.71179 | $85.58950 |
| 100 | $1.62094 | $162.09400 |
| 300 | $1.49684 | $449.05200 |
| 500 | $1.38224 | $691.12000 |
| 1000 | $1.27641 | $1276.41000 |
