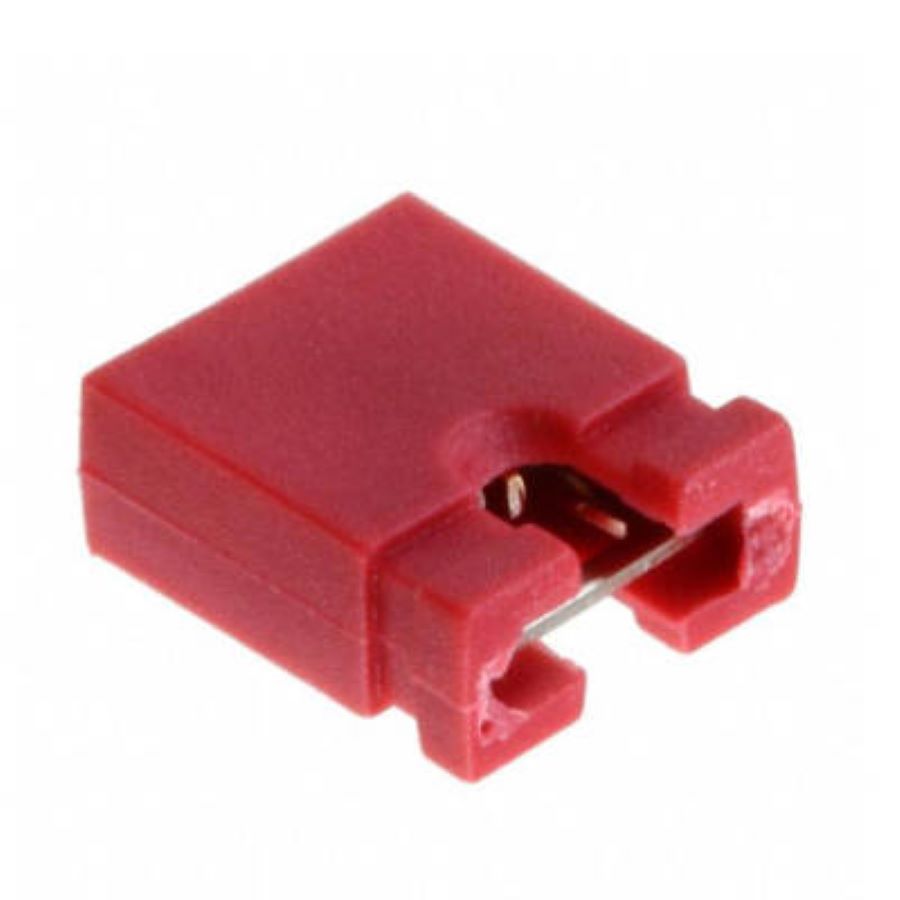

M7581-05
Manufacturer:
Harwin
Mfr.Part #:
M7581-05
Datasheet:
Description:
Headers and Wire Housings Through Hole Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 5.9944 mm |
| Material | Glass, Polybutylene |
| Packaging | Bulk |
| Depth | 2.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Red |
| Gender | Socket (Female) |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Contact Resistance | 20 mΩ |
| Housing Color | Red |
| Plating | Gold |
| Contact Gender | Female |
Stock: 15518
Distributors
pcbx
pcbxUnit Price$0.10003
Ext.Price$0.10003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10003 | $0.10003 |
| 10 | $0.08259 | $0.82590 |
| 50 | $0.07674 | $3.83700 |
| 100 | $0.07130 | $7.13000 |
| 500 | $0.06443 | $32.21500 |
| 1000 | $0.05822 | $58.22000 |
| 3000 | $0.05694 | $170.82000 |
| 5000 | $0.05569 | $278.45000 |
| 10000 | $0.05446 | $544.60000 |
