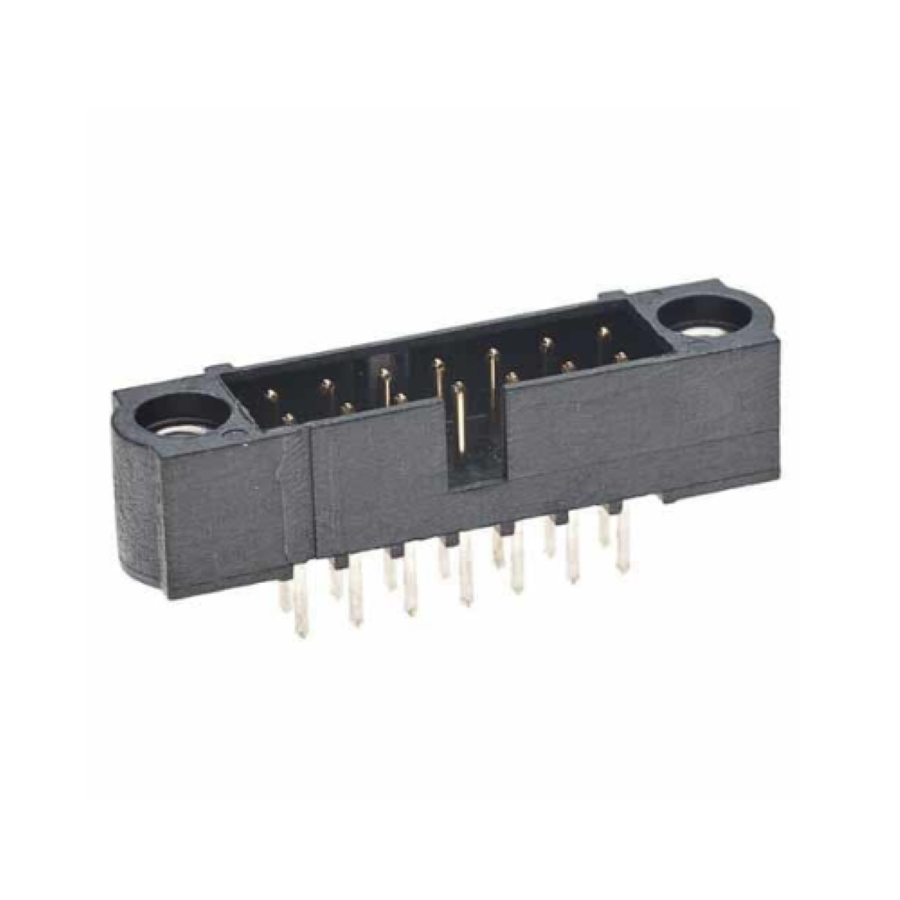

M80-5000622
Manufacturer:
Harwin
Mfr.Part #:
M80-5000622
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 16 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 6.05 mm |
| RoHS | Non-Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polyphenylene |
| Fastening Type | Threaded |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
| Termination Post Length | 3.25 mm |
Stock: 75
Distributors
pcbx
pcbxUnit Price$6.34529
Ext.Price$6.34529
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.34529 | $6.34529 |
| 10 | $5.21934 | $52.19340 |
| 25 | $4.97033 | $124.25825 |
| 50 | $4.73320 | $236.66000 |
| 100 | $4.50738 | $450.73800 |
| 300 | $4.29233 | $1287.69900 |
| 500 | $4.08754 | $2043.77000 |
| 1000 | $3.89250 | $3892.50000 |
