M80-5001042
Manufacturer:
Harwin
Mfr.Part #:
M80-5001042
Datasheet:
Description:

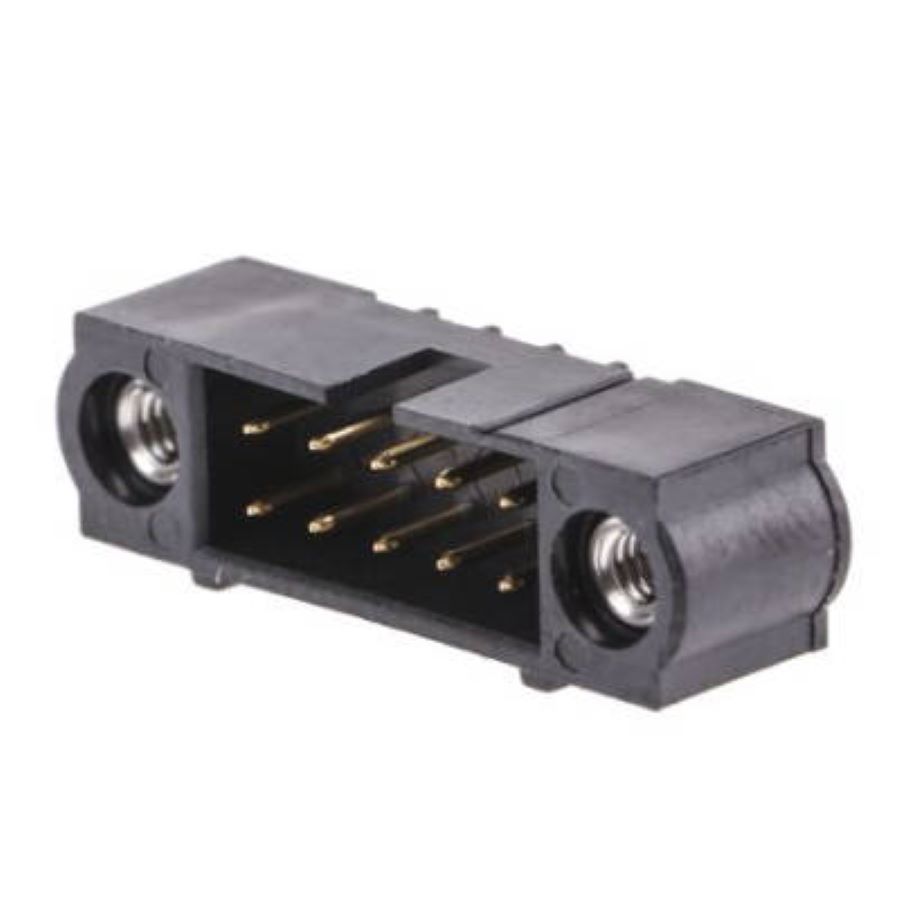

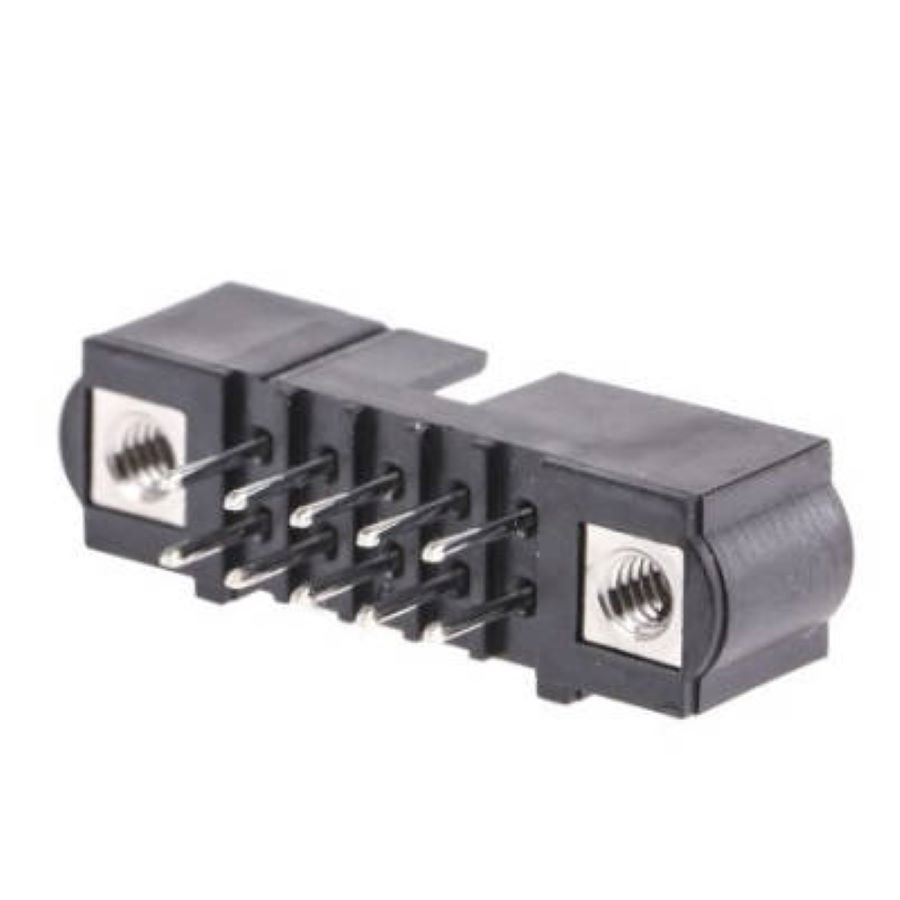

Headers and Wire Housings Through Hole Male Pin, Plug Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 120 V |
| Length | 20 mm |
| Width | 5.55 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 5.6 mm |
| Packaging | Tube |
| Voltage Rating | 120 V |
| Depth | 6.05 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 120 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin, Plug |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polyphenylene |
| Fastening Type | Threaded |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
| Termination Post Length | 3.25 mm |
Stock: 1036
Distributors
pcbx
pcbxUnit Price$6.65220
Ext.Price$6.65220
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.65220 | $6.65220 |
| 10 | $5.55106 | $55.51060 |
| 25 | $5.27351 | $131.83775 |
| 50 | $5.00984 | $250.49200 |
| 100 | $4.75936 | $475.93600 |
| 300 | $4.52140 | $1356.42000 |
| 500 | $4.29534 | $2147.67000 |
| 1000 | $4.08058 | $4080.58000 |
