M80-5002642
Manufacturer:
Harwin
Mfr.Part #:
M80-5002642
Datasheet:
Description:

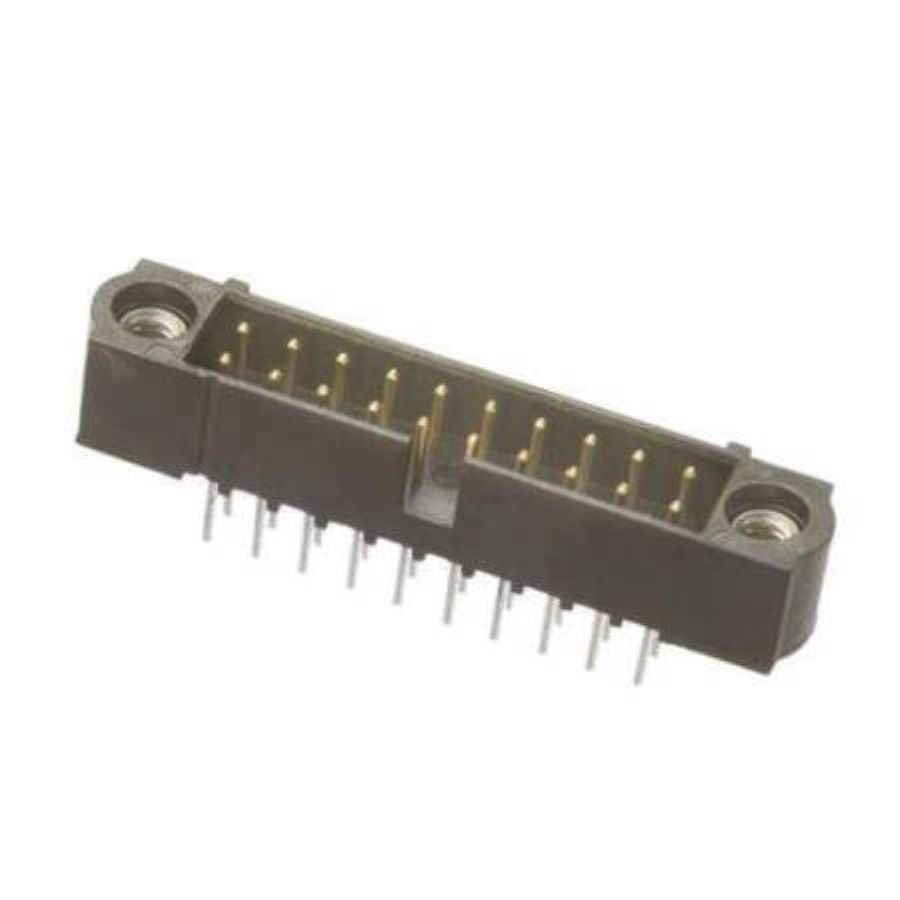

Headers and Wire Housings Through Hole Male Pin, Plug Number of Positions:26 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 120 V |
| Length | 36 mm |
| Width | 5.55 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 5.6 mm |
| Packaging | Tube |
| Voltage Rating | 120 V |
| Depth | 6.05 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Weight | 1.614987 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Copper |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 26 |
| Connector Type | Male Pin, Plug |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polyphenylene |
| Fastening Type | Threaded |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
| Termination Post Length | 3.25 mm |
Stock: 1547
Distributors
pcbx
pcbxUnit Price$7.44729
Ext.Price$7.44729
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.44729 | $7.44729 |
| 10 | $6.93830 | $69.38300 |
| 25 | $6.46409 | $161.60225 |
| 50 | $6.02229 | $301.11450 |
| 100 | $5.61069 | $561.06900 |
| 300 | $5.22722 | $1568.16600 |
| 500 | $4.86996 | $2434.98000 |
| 1000 | $4.53711 | $4537.11000 |
