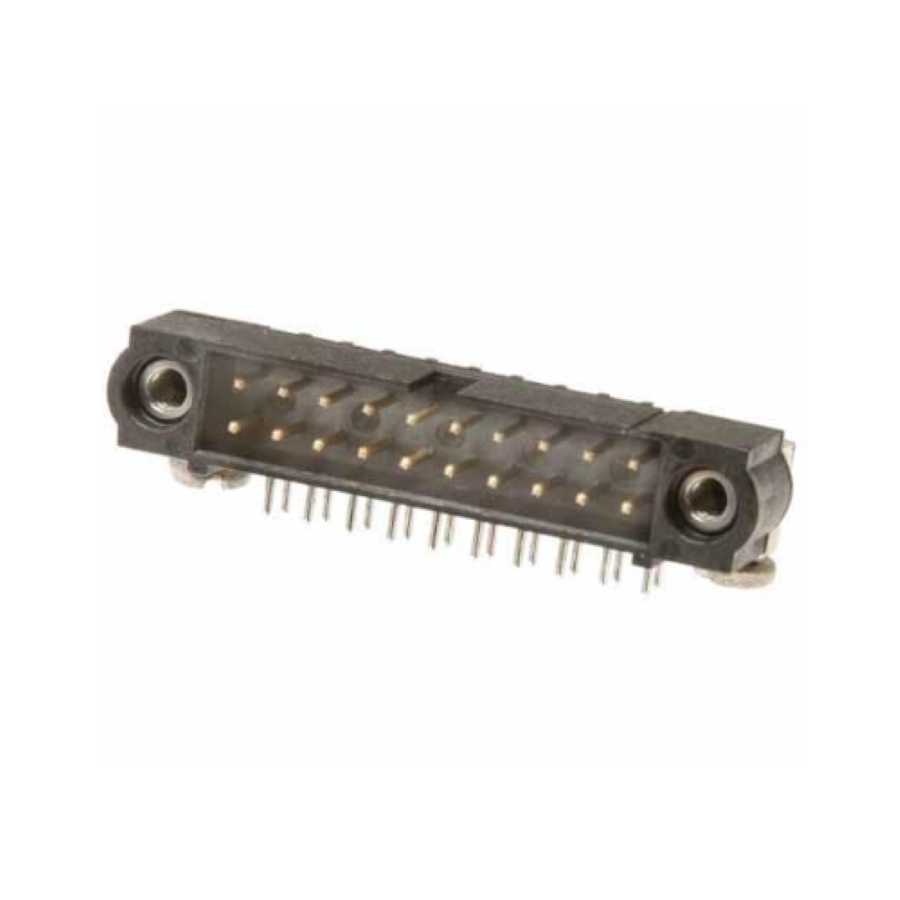

M80-5401042
Manufacturer:
Harwin
Mfr.Part #:
M80-5401042
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 120 V |
| Length | 20 mm |
| Width | 5.6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.15 mm |
| Packaging | Tube |
| Voltage Rating | 120 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Weight | 2.018004 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Bronze, Copper, Gold, Tin |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polyphenylene |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
| Termination Post Length | 3 mm |
Stock: 312
Distributors
pcbx
pcbxUnit Price$13.33604
Ext.Price$13.33604
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $13.33604 | $13.33604 |
| 10 | $11.12691 | $111.26910 |
| 25 | $10.56476 | $264.11900 |
| 50 | $10.03101 | $501.55050 |
| 100 | $9.52423 | $952.42300 |
| 300 | $9.04305 | $2712.91500 |
| 500 | $8.58606 | $4293.03000 |
