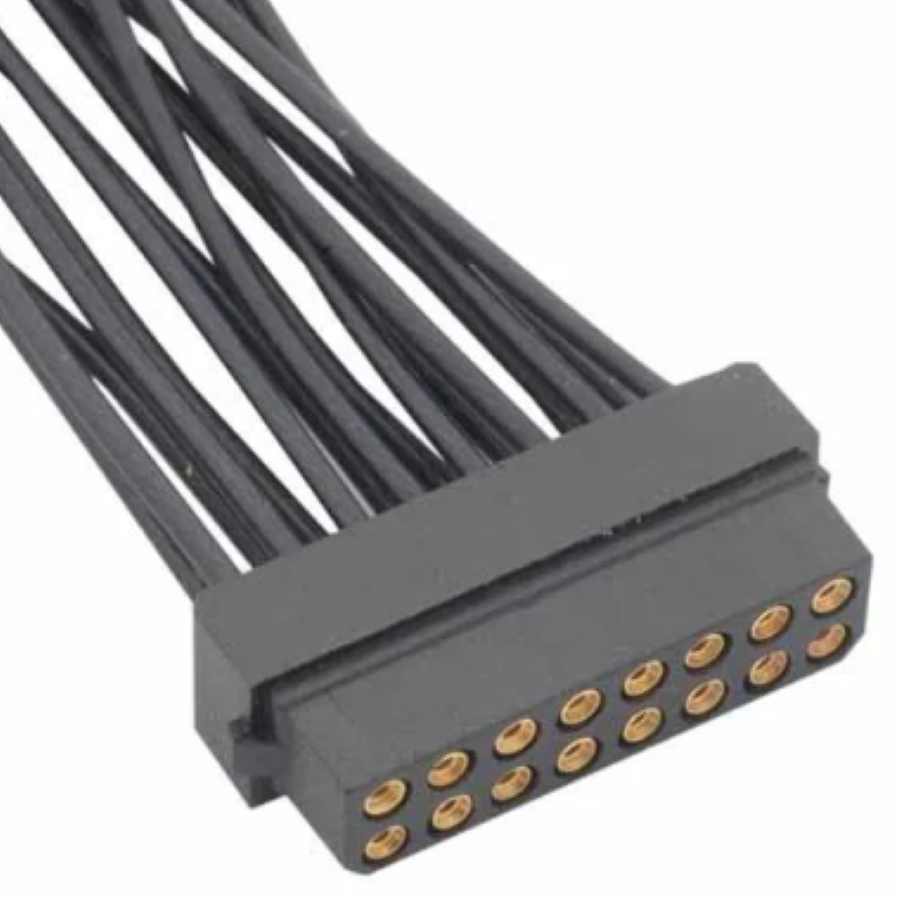

M80-7880605
Manufacturer:
Harwin
Mfr.Part #:
M80-7880605
Datasheet:
Description:
Headers and Wire Housings Through Hole Crimp, Receptacle, Socket Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 360 V |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Copper |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 6 |
| Connector Type | Crimp, Receptacle, Socket |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polyamide |
| Fastening Type | Ramp |
| Wire Gauge (Max) | 32 AWG |
| Wire Gauge (Min) | 28 AWG |
| Contact Gender | Female |
Stock: 2
Distributors
pcbx
pcbxUnit Price$3.49239
Ext.Price$3.49239
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.49239 | $3.49239 |
| 10 | $2.96660 | $29.66600 |
| 25 | $2.77852 | $69.46300 |
| 50 | $2.64686 | $132.34300 |
| 100 | $2.52204 | $252.20400 |
| 300 | $2.38043 | $714.12900 |
| 500 | $2.24676 | $1123.38000 |
| 1000 | $2.13989 | $2139.89000 |
