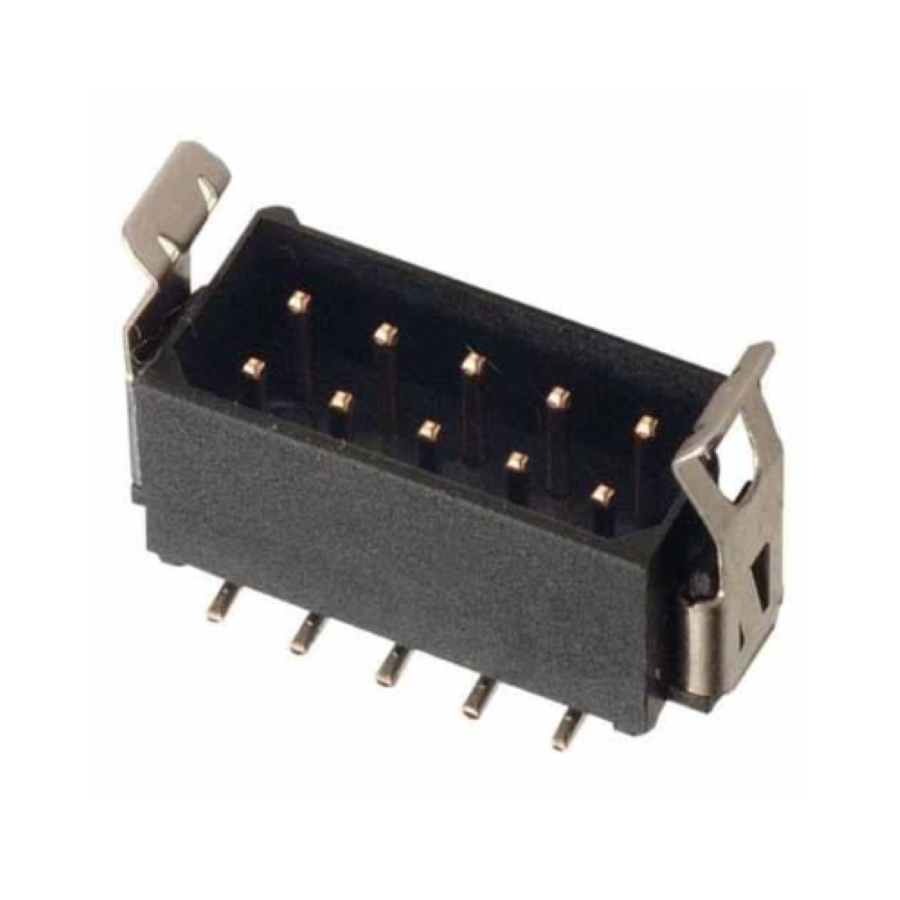

M80-8280442
Manufacturer:
Harwin
Mfr.Part #:
M80-8280442
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:4 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 8.1 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 120 V |
| Depth | 7.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
Stock: 674
Distributors
pcbx
pcbxUnit Price$2.74090
Ext.Price$2.74090
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.74090 | $2.74090 |
| 10 | $2.73492 | $27.34920 |
| 25 | $2.14673 | $53.66825 |
| 50 | $2.04338 | $102.16900 |
| 100 | $1.94500 | $194.50000 |
| 300 | $1.85136 | $555.40800 |
| 500 | $1.76223 | $881.11500 |
| 1000 | $1.67737 | $1677.37000 |
