M80-8502645
Manufacturer:
Harwin
Mfr.Part #:
M80-8502645
Datasheet:
Description:

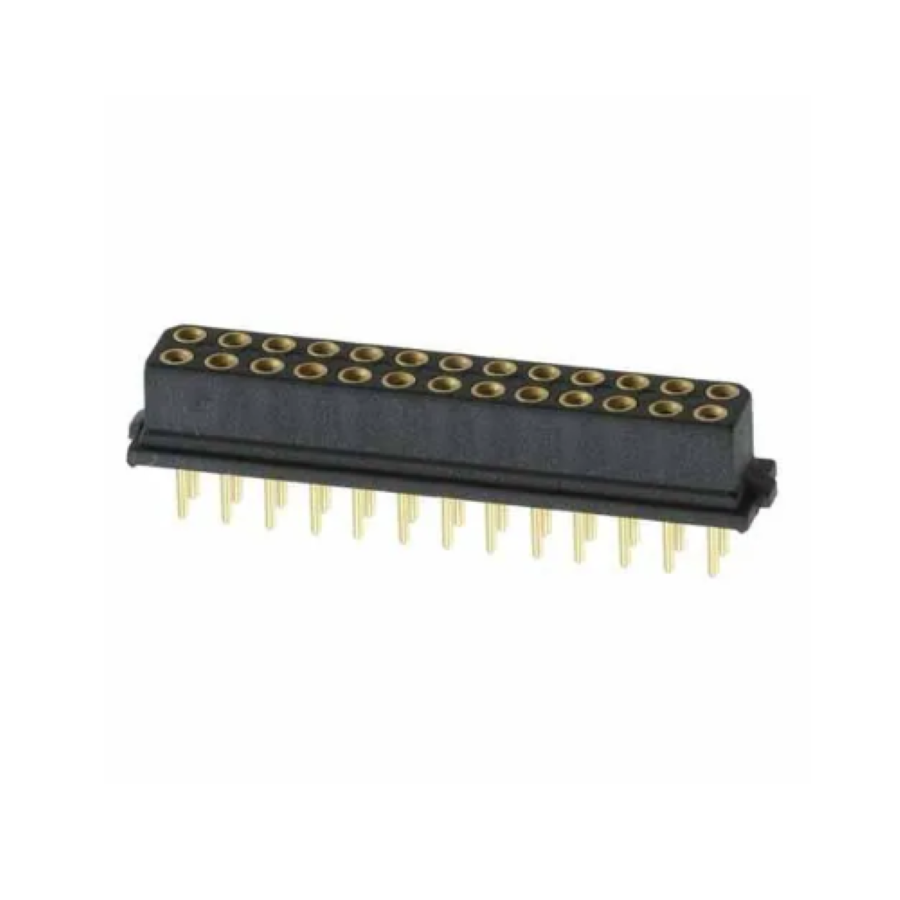

Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:26 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 29.15 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 120 V |
| Depth | 5.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 26 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Ramp |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 159
Distributors
pcbx
pcbxUnit Price$8.78611
Ext.Price$8.78611
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.78611 | $8.78611 |
| 10 | $7.63591 | $76.35910 |
| 25 | $6.63629 | $165.90725 |
| 50 | $5.76753 | $288.37650 |
| 100 | $5.01245 | $501.24500 |
