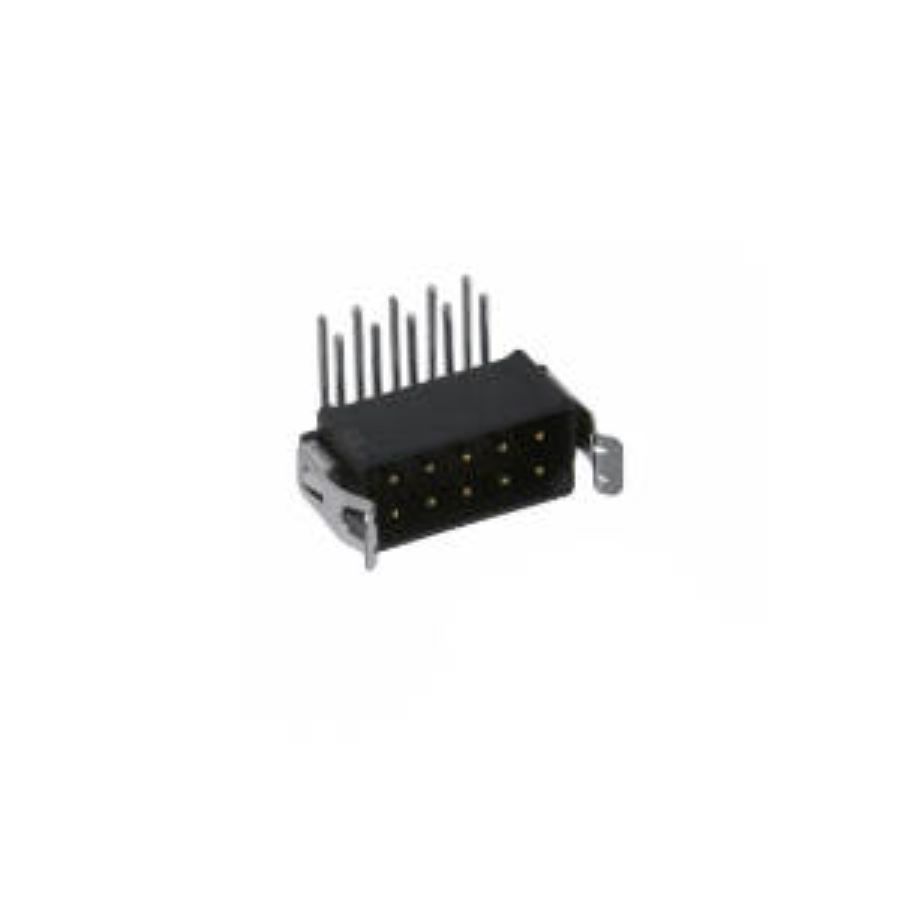

M80-8511042
Manufacturer:
Harwin
Mfr.Part #:
M80-8511042
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 120 V |
| Length | 13.6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 120 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
Stock: 1011
Distributors
pcbx
pcbxUnit Price$3.89250
Ext.Price$3.89250
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.89250 | $3.89250 |
| 10 | $3.49837 | $34.98370 |
| 25 | $3.28183 | $82.04575 |
| 50 | $3.07870 | $153.93500 |
| 100 | $2.88814 | $288.81400 |
| 300 | $2.70938 | $812.81400 |
| 500 | $2.54168 | $1270.84000 |
| 1000 | $2.38440 | $2384.40000 |
