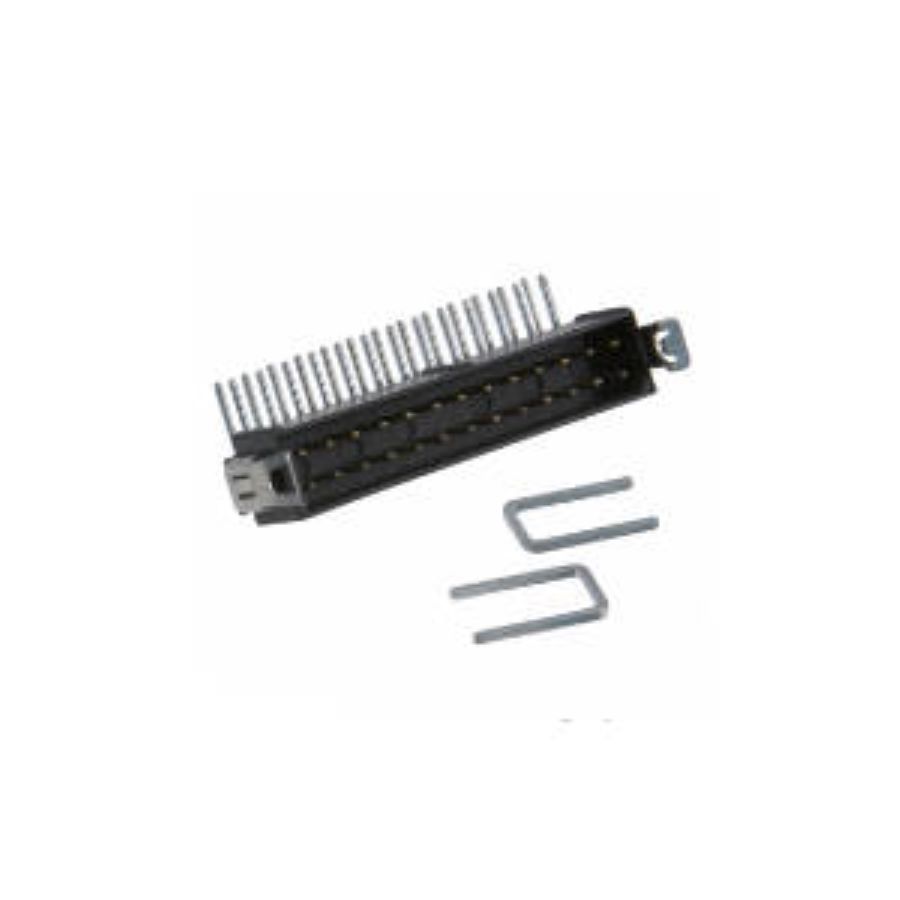

M80-8512642
Manufacturer:
Harwin
Mfr.Part #:
M80-8512642
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:26 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 120 V |
| Length | 29.6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 120 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 26 |
| Connector Type | Header |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Latch |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
Stock: 224
Distributors
pcbx
pcbxUnit Price$5.16890
Ext.Price$5.16890
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.16890 | $5.16890 |
| 10 | $4.85151 | $48.51510 |
| 25 | $4.55361 | $113.84025 |
| 50 | $4.27400 | $213.70000 |
| 100 | $4.01156 | $401.15600 |
| 300 | $3.76524 | $1129.57200 |
| 500 | $3.53404 | $1767.02000 |
| 1000 | $3.31713 | $3317.13000 |
