M80-8530442
Manufacturer:
Harwin
Mfr.Part #:
M80-8530442
Datasheet:
Description:

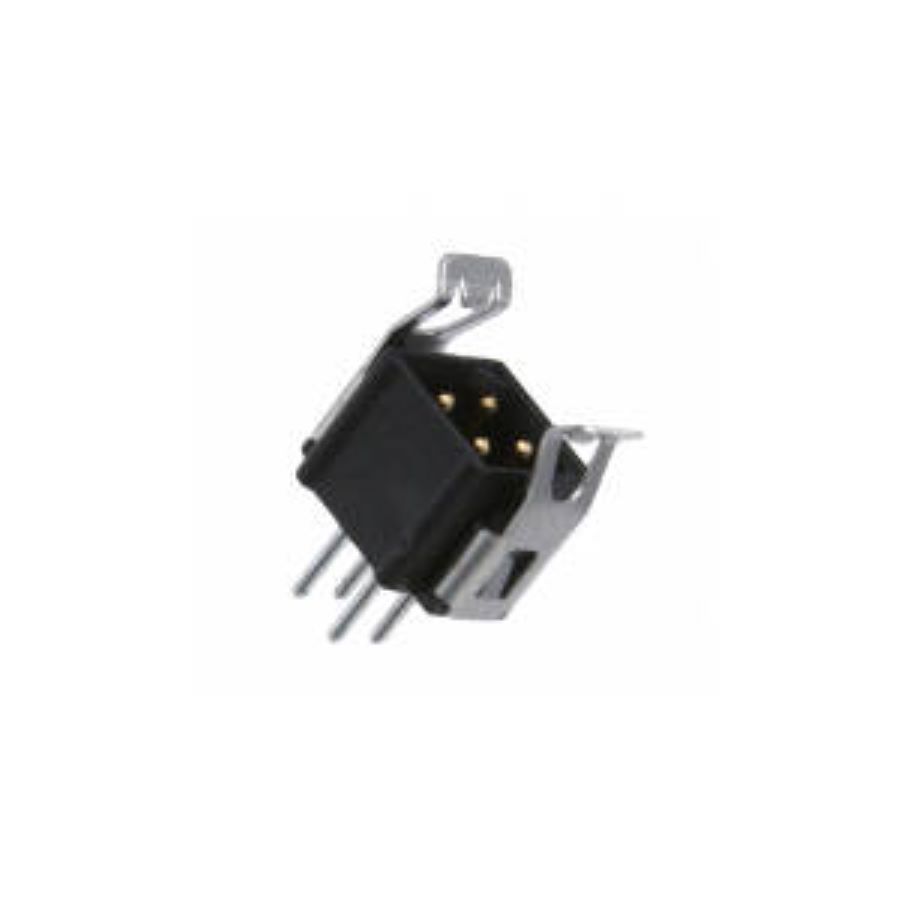

Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 7.6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 120 V |
| Depth | 5.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 120 V |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
Stock: 3472
Distributors
pcbx
pcbxUnit Price$2.38440
Ext.Price$2.38440
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.38440 | $2.38440 |
| 10 | $2.37841 | $23.78410 |
| 25 | $1.87144 | $46.78600 |
| 50 | $1.86460 | $93.23000 |
| 100 | $1.75355 | $175.35500 |
| 300 | $1.64911 | $494.73300 |
| 500 | $1.55089 | $775.44500 |
| 1000 | $1.45851 | $1458.51000 |
