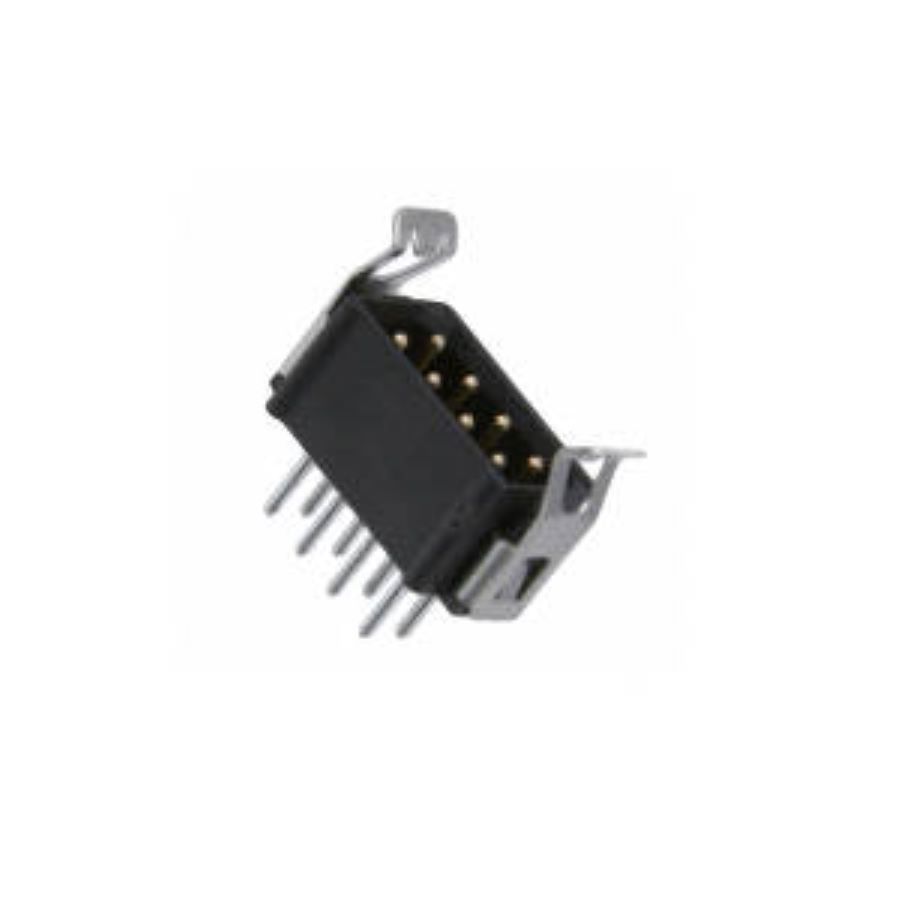

M80-8530842
Manufacturer:
Harwin
Mfr.Part #:
M80-8530842
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:8 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 11.6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 120 V |
| Depth | 5.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 120 V |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
Stock: 1257
Distributors
pcbx
pcbxUnit Price$2.65370
Ext.Price$2.65370
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.65370 | $2.65370 |
| 10 | $2.37157 | $23.71570 |
| 25 | $2.21713 | $55.42825 |
| 50 | $2.07274 | $103.63700 |
| 100 | $1.93776 | $193.77600 |
| 300 | $1.81157 | $543.47100 |
| 500 | $1.69359 | $846.79500 |
| 1000 | $1.58333 | $1583.33000 |
