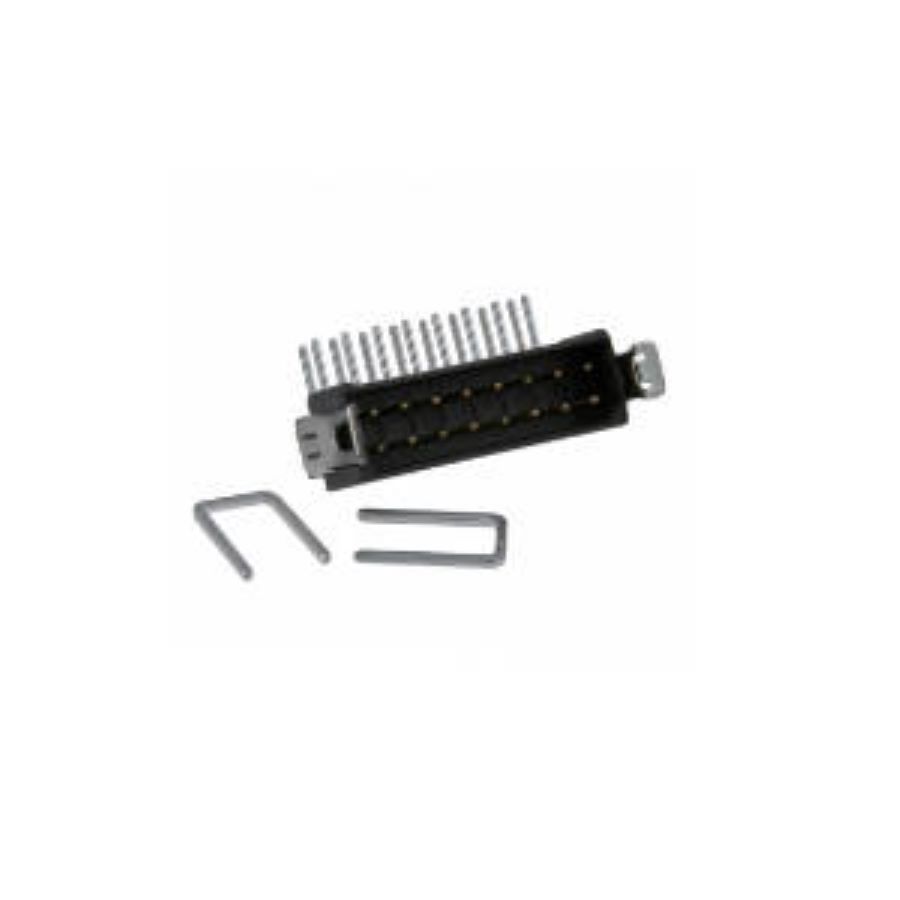

M80-8661622
Manufacturer:
Harwin
Mfr.Part #:
M80-8661622
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:16 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Termination | Through Hole |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 120 V |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 16 |
| Connector Type | Male Pin |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polyester |
| Fastening Type | Latch |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
Stock: 174
Distributors
pcbx
pcbxUnit Price$4.58755
Ext.Price$4.58755
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.58755 | $4.58755 |
| 10 | $3.65483 | $36.54830 |
| 25 | $3.45522 | $86.38050 |
| 50 | $3.26651 | $163.32550 |
| 100 | $3.08811 | $308.81100 |
| 300 | $2.91945 | $875.83500 |
| 500 | $2.76000 | $1380.00000 |
| 1000 | $2.60924 | $2609.24000 |
