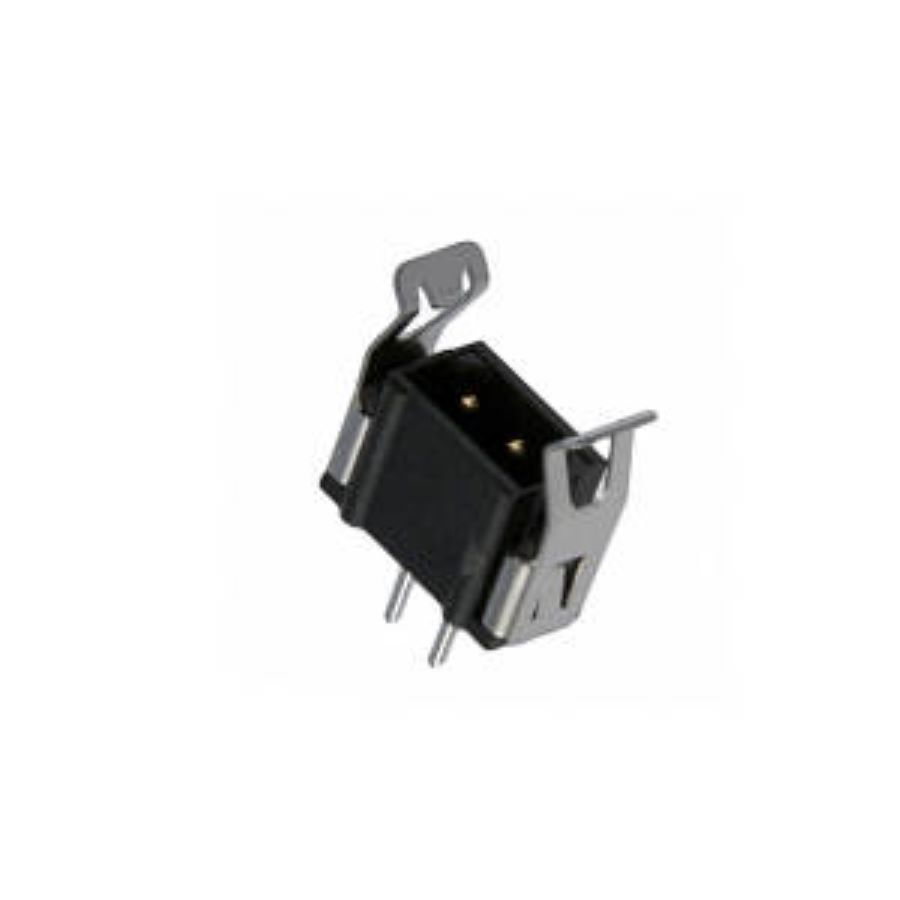

M80-8820242
Manufacturer:
Harwin
Mfr.Part #:
M80-8820242
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 7.6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 5.56 mm |
| Packaging | Tube |
| Voltage Rating | 120 V |
| Depth | 3.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 120 V |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Gender | Male |
Stock: 3344
Distributors
pcbx
pcbxUnit Price$2.18348
Ext.Price$2.18348
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.18348 | $2.18348 |
| 10 | $2.04197 | $20.41970 |
| 25 | $1.90963 | $47.74075 |
| 50 | $1.78587 | $89.29350 |
| 100 | $1.67013 | $167.01300 |
| 300 | $1.56189 | $468.56700 |
| 500 | $1.46067 | $730.33500 |
| 1000 | $1.36601 | $1366.01000 |
| 3000 | $1.27748 | $3832.44000 |
| 5000 | $1.19469 | $5973.45000 |
