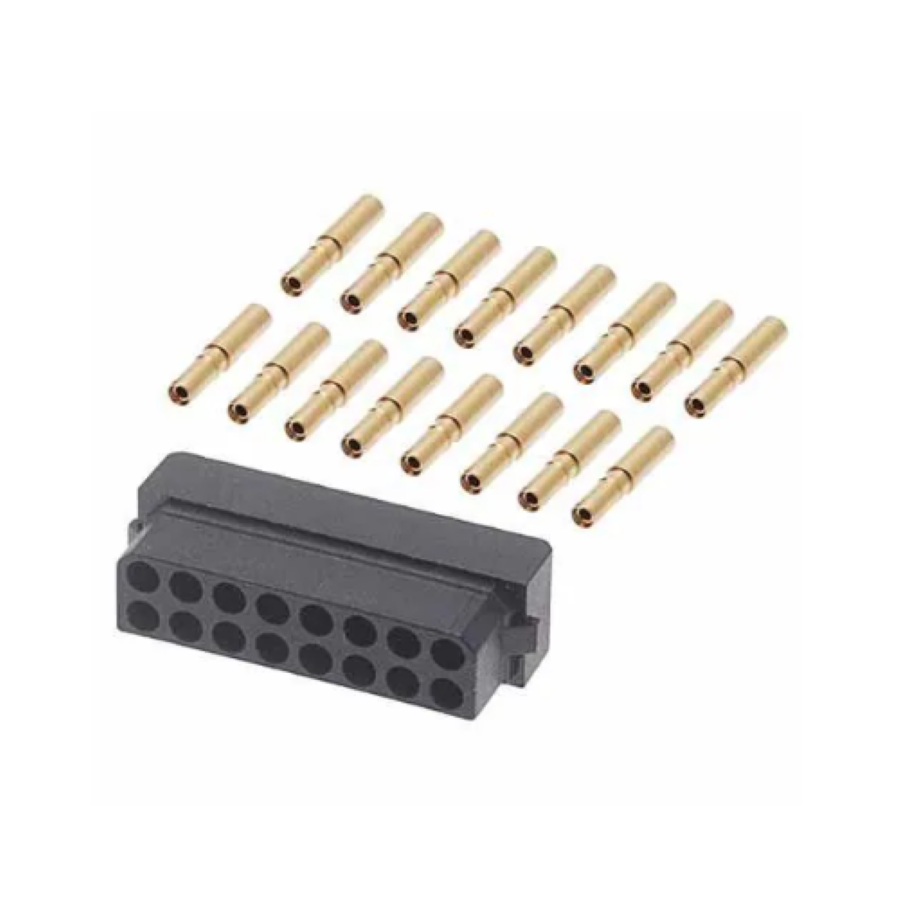

M80-8891005
Manufacturer:
Harwin
Mfr.Part #:
M80-8891005
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Crimp, Receptacle, Socket Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 13.15 mm |
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 120 V |
| Depth | 8.15 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 10 |
| Connector Type | Crimp, Receptacle, Socket |
| Wire/Cable Gauge | 22 AWG |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polyester |
| Fastening Type | Ramp |
| Contact Resistance | 25 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Contact Gender | Female |
Stock: 551
Distributors
pcbx
pcbxUnit Price$4.26183
Ext.Price$4.26183
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.26183 | $4.26183 |
| 10 | $3.62319 | $36.23190 |
| 25 | $3.39150 | $84.78750 |
| 50 | $3.22907 | $161.45350 |
| 100 | $3.07860 | $307.86000 |
| 300 | $2.90802 | $872.40600 |
| 500 | $2.74689 | $1373.44500 |
| 1000 | $2.61609 | $2616.09000 |
