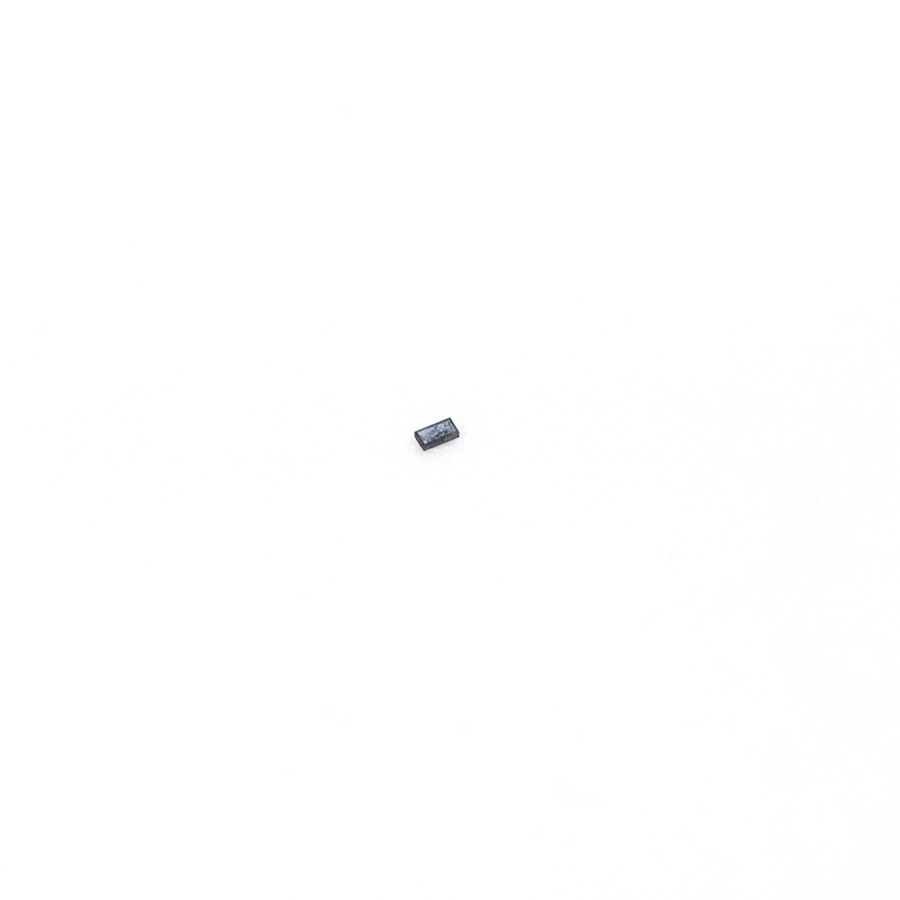

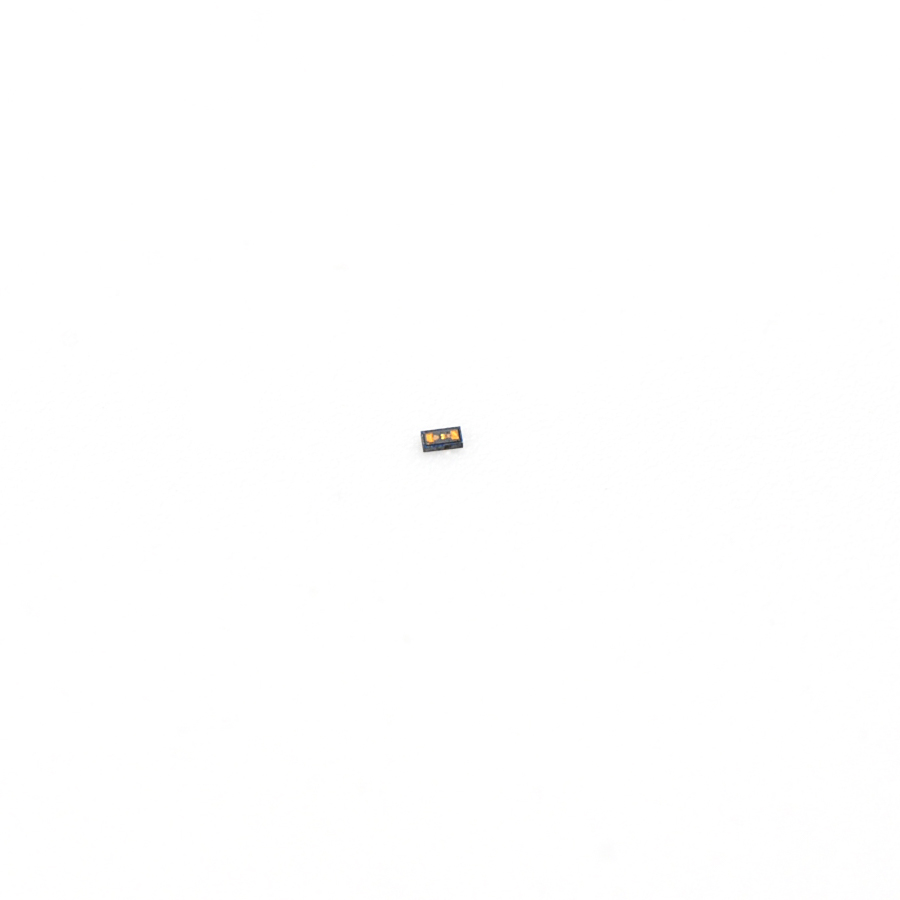

MADP-000907-14020W
Manufacturer:
MACOM
Mfr.Part #:
MADP-000907-14020W
Datasheet:
Description:
Rectifier Diodes 0.66mmL×0.343mmW×0.165mmH SMD/SMT PIN - Single Single Forward Current:10 mA Forward Voltage:1.33 V Reverse Voltage:45 V
| Parameter | Value |
|---|---|
| Capacitance | 25 fF |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Resistance | 7 Ω |
| Height | 195 µm |
| Packaging | Tray |
| RoHS | Compliant |
| Type | PIN - Single |
| Forward Current | 10 mA |
| Forward Voltage | 1.33 V |
| Max Power Dissipation | 100 mW |
| Element Configuration | Single |
| Diode Type | PIN - Single |
| Reverse Voltage | 45 V |
| Max Junction Temperature (Tj) | 175 °C |
| Reverse Current | 50 nA |
| Reverse Voltage (DC) | 45 V |
Stock: 1051
Distributors
pcbx
pcbxUnit Price$10.00054
Ext.Price$10.00054
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $10.00054 | $10.00054 |
| 10 | $5.00027 | $50.00270 |
| 25 | $3.84636 | $96.15900 |
| 50 | $2.95874 | $147.93700 |
| 100 | $2.46562 | $246.56200 |
| 300 | $2.32391 | $697.17300 |
| 500 | $2.19033 | $1095.16500 |
| 1000 | $1.87743 | $1877.43000 |
