MAL203858101E3
Manufacturer:
Vishay
Mfr.Part #:
MAL203858101E3
Datasheet:
Description:

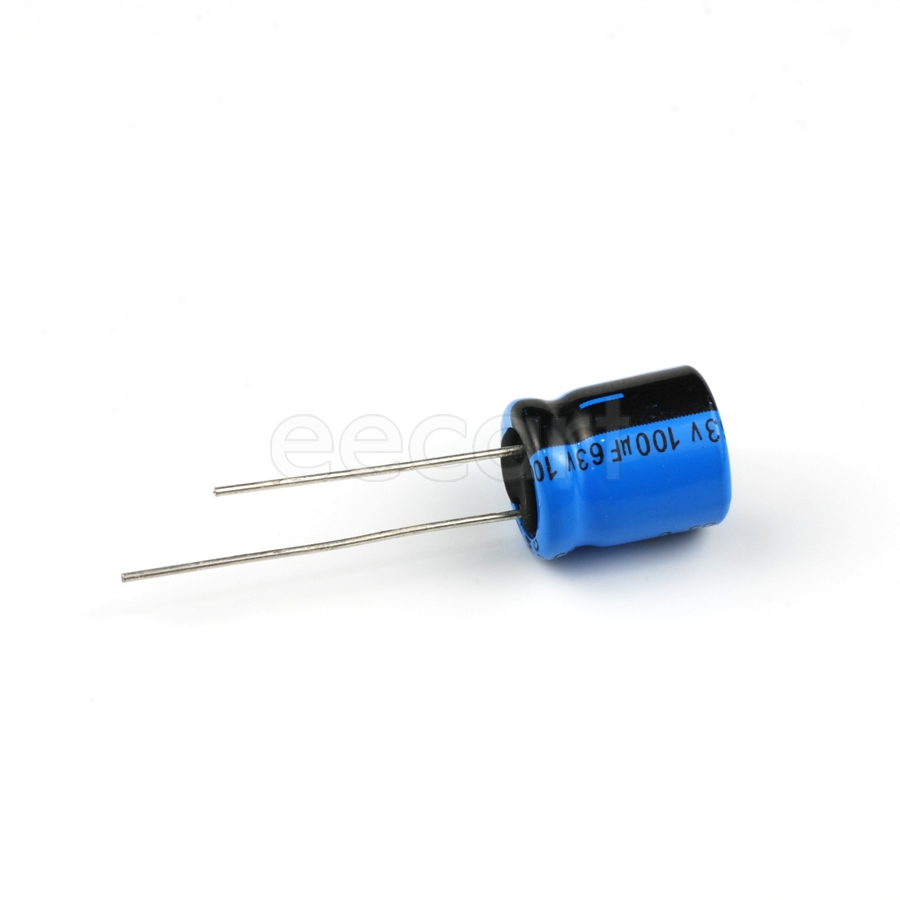

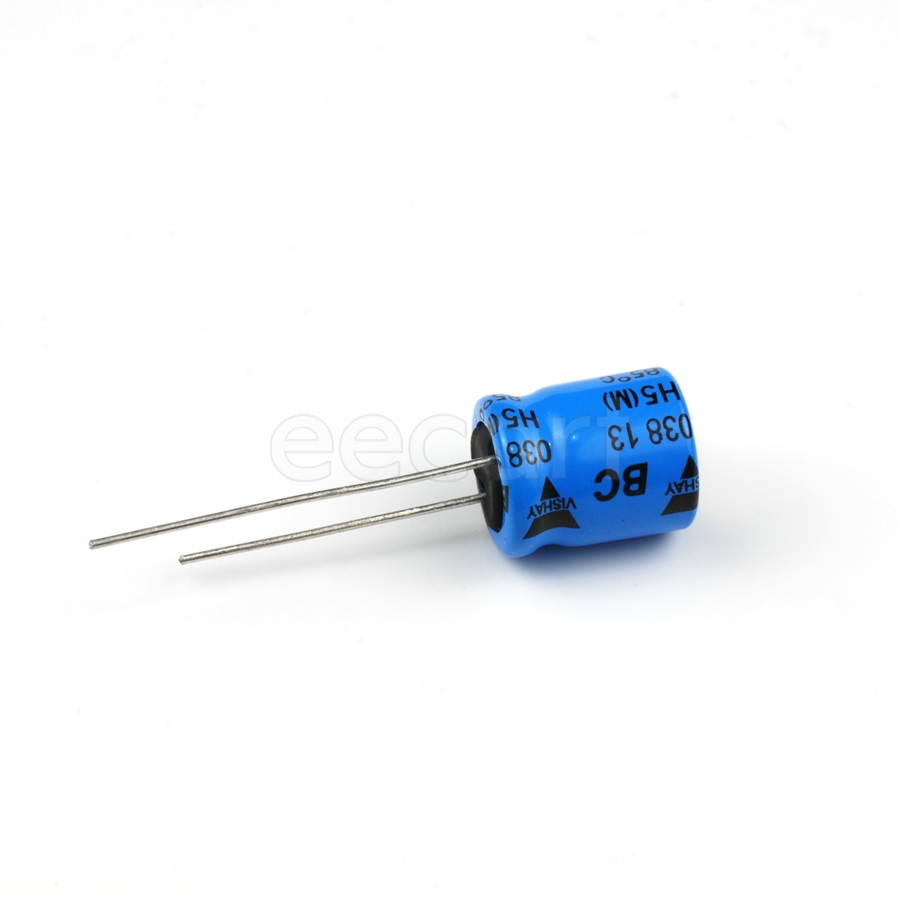

Aluminum Electrolytic Capacitors 10mmD×13.5mmH Through Hole 100 µF 20 % 63 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 63 V |
| Tolerance | 20 % |
| Life (Hours) | 3500 Hours |
| Ripple Current | 320 mA |
| Height - Seated (Max) | 13.49 mm |
| Length | 12 mm |
| Termination | Radial |
| Diameter | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 63 V |
| Number of Pins | 2 |
| Leakage Current | 63 µA |
| Height | 12 mm |
| Packaging | Bulk |
| Voltage Rating | 63 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 600 µm |
| Lead Pitch | 5 mm |
| Voltage | 63 V |
| REACH SVHC | Unknown |
| Dielectric Material | Aluminium |
| Ripple Current @ High Frequency | 432 mA @ 10 kHz |
