MAL214699811E3
Manufacturer:
Vishay
Mfr.Part #:
MAL214699811E3
Datasheet:
Description:

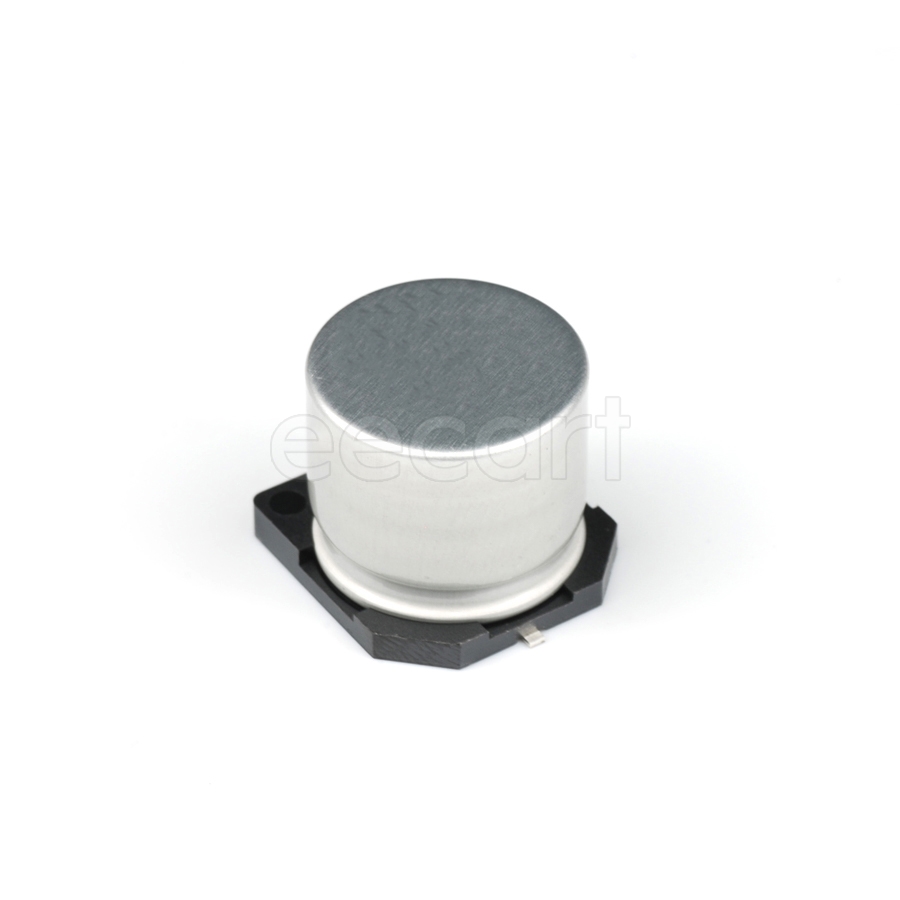

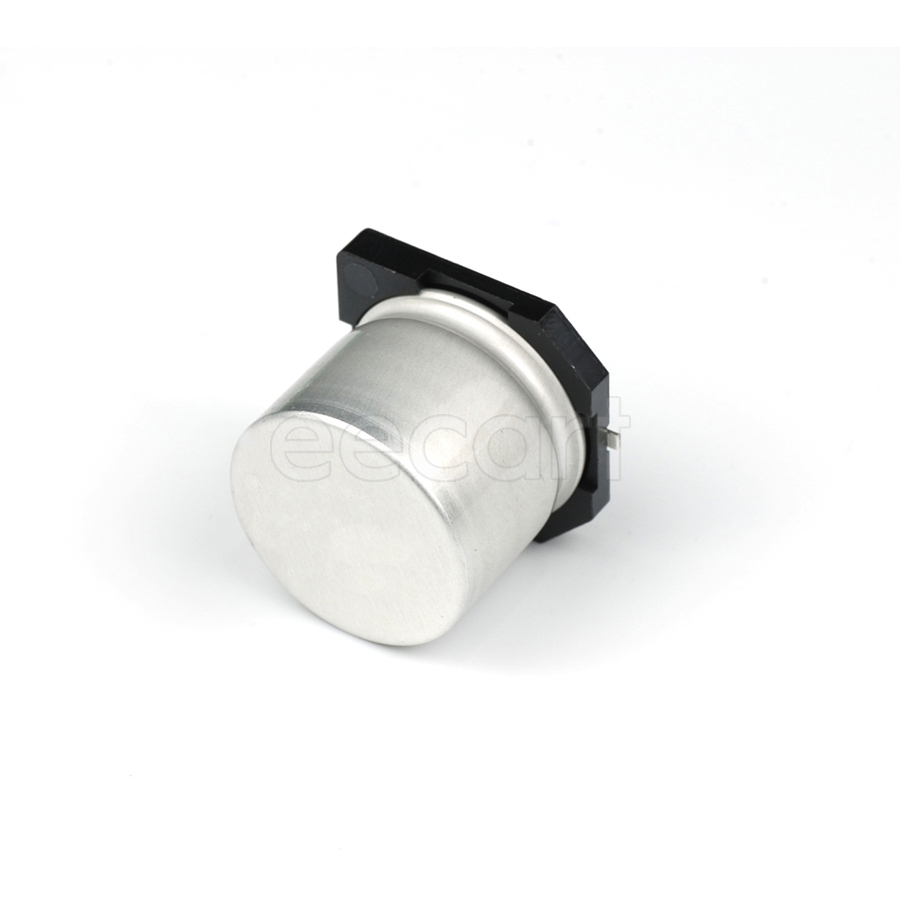

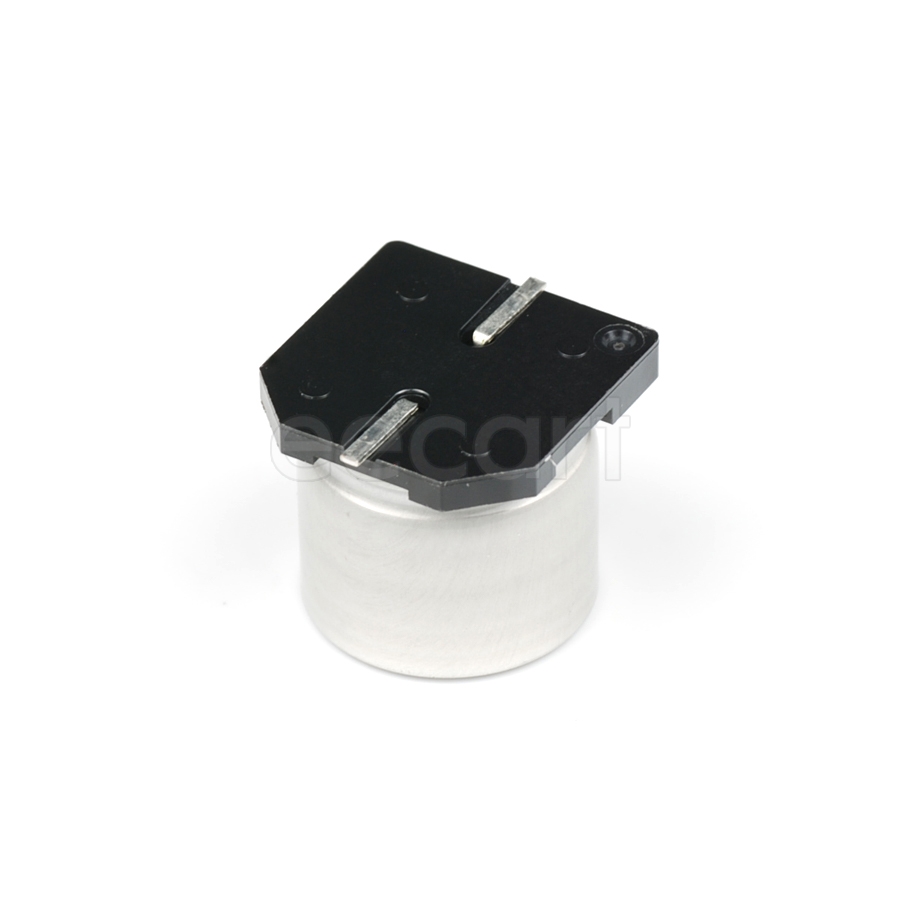

Aluminum Electrolytic Capacitors 16.6mmL×16.6mmW SMD/SMT 470 µF 20 % 63 V
| Parameter | Value |
|---|---|
| Capacitance | 470 µF |
| Voltage Rating (DC) | 63 V |
| Tolerance | 20 % |
| Life (Hours) | 5000 Hours |
| Ripple Current | 1.05 A |
| Height - Seated (Max) | 16 mm |
| Width | 16 mm |
| Termination | SMD/SMT |
| Diameter | 16 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 296 µA |
| Height | 16 mm |
| Packaging | Reel |
| Voltage Rating | 63 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 1.3 mm |
| Lead Pitch | 6.5 mm |
| Voltage | 63 V |
| REACH SVHC | Unknown |
| Impedance | 100 mΩ |
| Ripple Current (AC) | 1.05 A |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
Stock: 1483
Distributors
pcbx
pcbxUnit Price$2.54683
Ext.Price$2.54683
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.54683 | $2.54683 |
| 10 | $1.45167 | $14.51670 |
| 25 | $1.37693 | $34.42325 |
| 50 | $1.30604 | $65.30200 |
| 100 | $1.23880 | $123.88000 |
| 300 | $1.21764 | $365.29200 |
| 500 | $1.19684 | $598.42000 |
| 1000 | $1.17638 | $1176.38000 |
