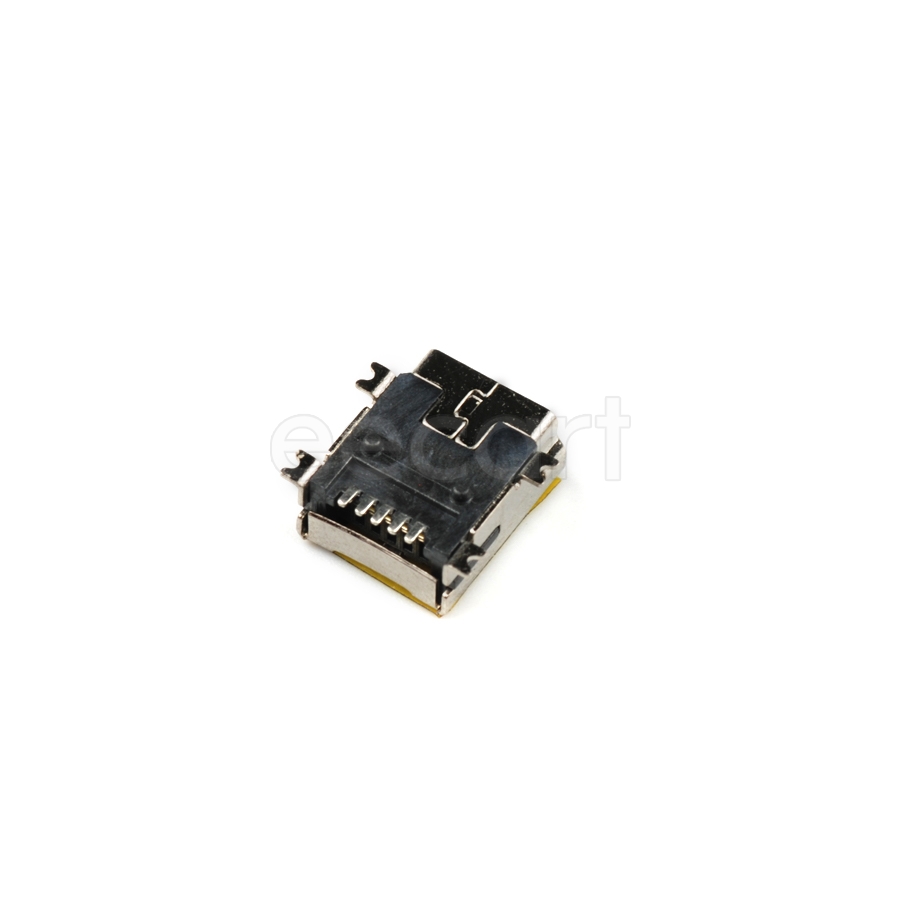

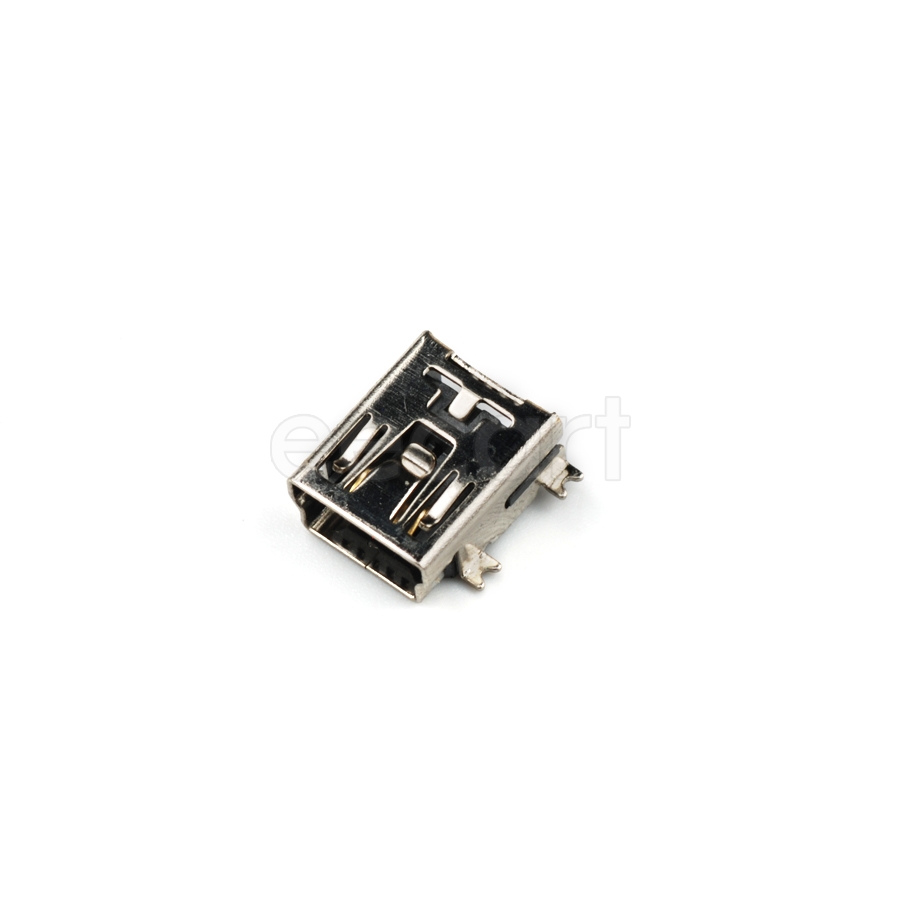

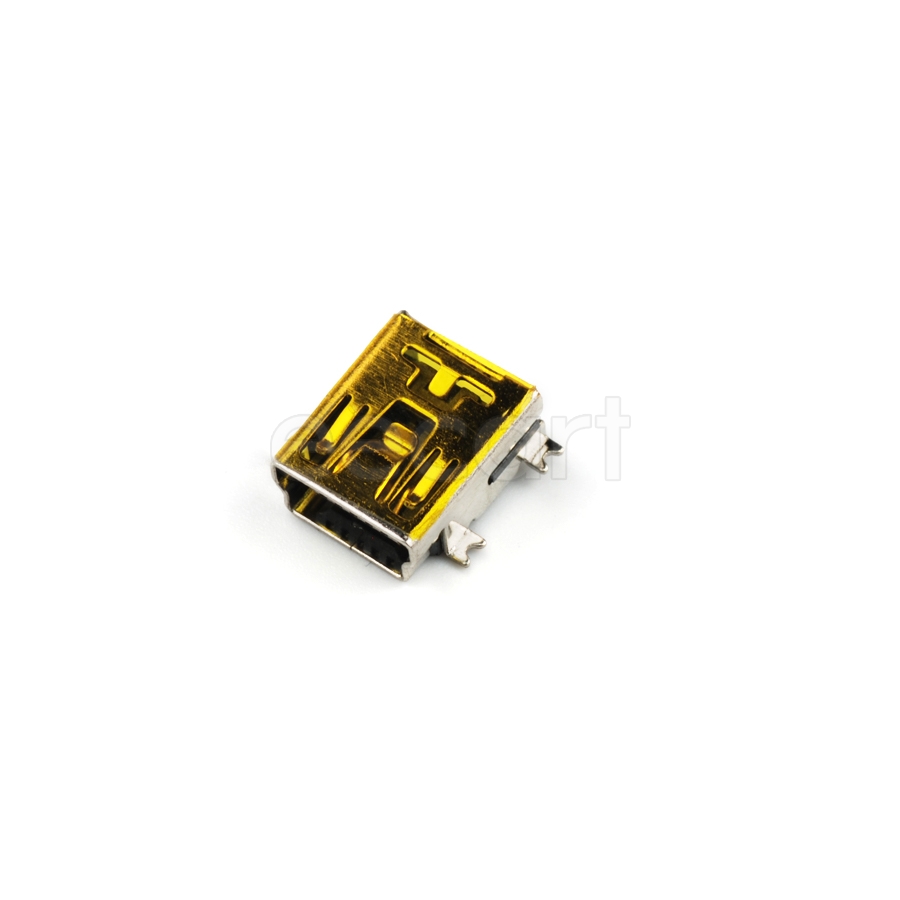

MC32598
Manufacturer:
Multicomp
Mfr.Part #:
MC32598
Datasheet:
Description:
IC and Component Sockets SMD/SMT USB Number of Positions:5 Number of Rows:2 Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Width | 19.05 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 30 V |
| Height | 6.35 mm |
| Material | Brass |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Weight | 4.535924 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Gender | Receptacle |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | USB |
| Contact Resistance | 20 mΩ |
| Number of Rows | 2 |
| Pitch | 800 µm |
| Number of Positions | 5 |
| Packaging | Bulk |
