MCP1701AT-3302I/CB
Manufacturer:
Microchip
Mfr.Part #:
MCP1701AT-3302I/CB
Datasheet:
Description:

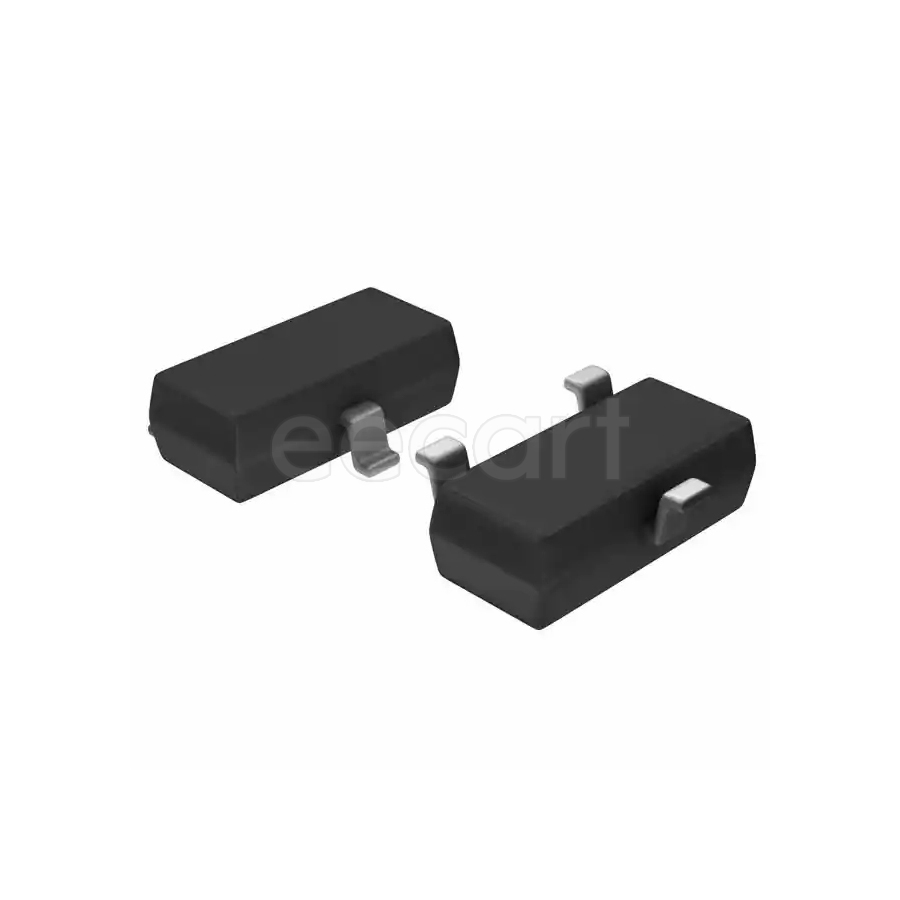

Voltage Regulators - Linear TO-236-3 SMD/SMT Positive Fixed 3.3 V 150 mA
| Parameter | Value |
|---|---|
| Length | 3.1 mm |
| Width | 1.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 1.3 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Dropout Voltage | 400 mV |
| Output Current | 150 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Max Power Dissipation | 150 mW |
| Max Supply Voltage | 10 V |
| Accuracy | 2 % |
| Max Output Current | 250 mA |
| Number of Channels | 1 |
| Input Bias Current | 2 µA |
| Quiescent Current | 4.5 µA |
| Max Input Voltage | 10 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 4.5 µA |
| Min Output Voltage | 3.3 V |
| Nominal Output Voltage | 3.3 V |
| Max Output Voltage | 3.3 V |
| Number of Regulators | 1 |
| Schedule B | 8542390000 |
| RoHS | Compliant |
| Polarity | Positive |
| Packaging | Reel |
| Load Regulation | 1.3 % |
| Line Regulation | 0.2 %/V |
Stock: 1
Distributors
pcbx
pcbxUnit Price$1.40554
Ext.Price$1.40554
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.40554 | $1.40554 |
| 10 | $1.16496 | $11.64960 |
| 25 | $1.06561 | $26.64025 |
| 50 | $0.97474 | $48.73700 |
| 100 | $0.89162 | $89.16200 |
| 300 | $0.85730 | $257.19000 |
| 500 | $0.82431 | $412.15500 |
| 1000 | $0.79356 | $793.56000 |
