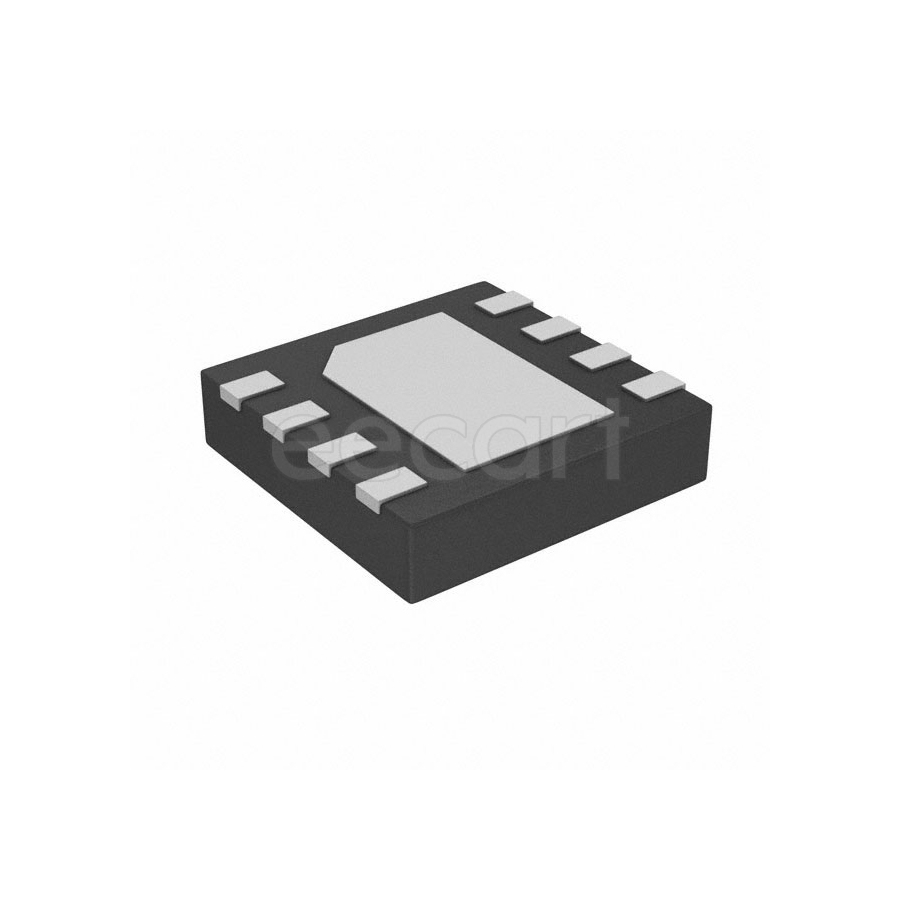

MCP1726-ADJE/MF
Manufacturer:
Microchip
Mfr.Part #:
MCP1726-ADJE/MF
Datasheet:
Description:
Voltage Regulators - Linear DFN-8 EP SMD/SMT Positive Adjustable 5 V 1 A
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 950 µm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Dropout Voltage | 220 mV |
| Min Input Voltage | 2.3 V |
| Output Current | 1 A |
| Output Voltage | 5 V |
| Output Type | Adjustable |
| Accuracy | 2.5 % |
| Max Output Current | 1 A |
| Number of Channels | 1 |
| Input Bias Current | 140 µA |
| Quiescent Current | 220 µA |
| Max Input Voltage | 6 V |
| Number of Outputs | 1 |
| Min Output Voltage | 800 mV |
| Max Output Voltage | 5 V |
| Reference Voltage | 410 mV |
| Output Voltage Accuracy | 2.5 % |
| Schedule B | 8542390000 |
| RoHS | Compliant |
| Polarity | Positive |
| Packaging | Tube |
| Load Regulation | 0.5 % |
| Line Regulation | 0.05 %/V |
Stock: 11
Distributors
pcbx
pcbxUnit Price$1.47341
Ext.Price$1.47341
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.47341 | $1.47341 |
| 10 | $1.21200 | $12.12000 |
| 25 | $1.11870 | $27.96750 |
| 50 | $1.03258 | $51.62900 |
| 100 | $0.95309 | $95.30900 |
| 300 | $0.87972 | $263.91600 |
| 500 | $0.81199 | $405.99500 |
