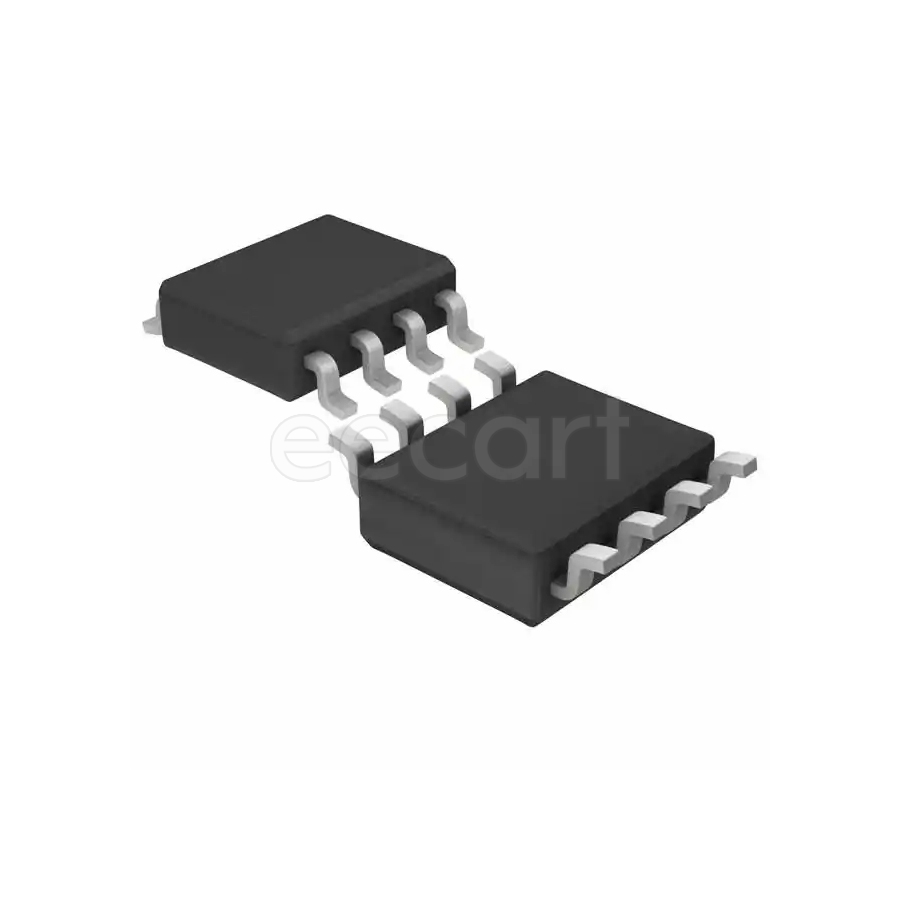

MCP3201T-CI/SN
Manufacturer:
Microchip
Mfr.Part #:
MCP3201T-CI/SN
Datasheet:
Description:
Analog to Digital Converters (ADCs) SOIC-8 Narrow SMD/SMT number of channels:1 Number of Inputs:1 1.5 B 100 ksps Core Architecture:SAR
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Radiation Hardening | No |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Interface | SPI, Serial |
| Operating Supply Voltage | 5 V |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Number of Channels | 1 |
| Number of Bits | 12 |
| Number of Inputs | 1 |
| Supply Type | Single |
| Sampling Rate | 100 ksps |
| Integral Nonlinearity (INL) | 2 LSB |
| Number of Converters | 1 |
| Number of Analog Inputs | 1 |
| Resolution | 1.5 B |
| Number of A/D Converters | 1 |
| Conversion Rate | 100 ksps |
| Differential Nonlinearity | 1 LSB |
| Schedule B | 8542390000 |
| RoHS | Compliant |
| Packaging | Reel |
| Ratio - S/H:ADC | 1:1 |
| Analog Supply Voltage | 2.7 V to 5.5 V |
| Max Digital Supply Voltage | 5.5 V |
| Min Digital Supply Voltage | 2.7 V |
| Configuration | S/H-ADC |
| Input Type | Pseudo-Differential |
| Interface Type(Data Interface) | SPI |
| Core Architecture(core/core processor) | SAR |
| Reference Type | External |
Stock: 17447
Distributors
pcbx
pcbxUnit Price$0.95154
Ext.Price$0.95154
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.95154 | $0.95154 |
| 10 | $0.86980 | $8.69800 |
| 25 | $0.79509 | $19.87725 |
| 50 | $0.75654 | $37.82700 |
| 100 | $0.71985 | $71.98500 |
| 300 | $0.71985 | $215.95500 |
| 500 | $0.71985 | $359.92500 |
| 1000 | $0.71985 | $719.85000 |
| 3000 | $0.71985 | $2159.55000 |
