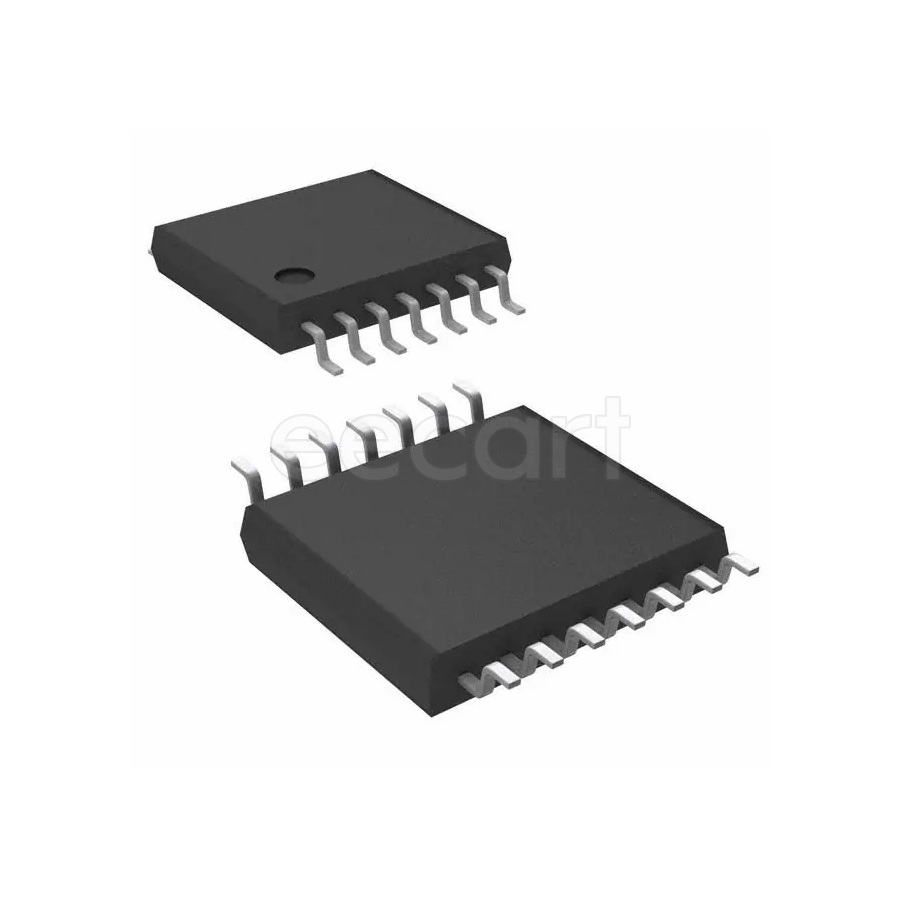

MCP3302-CI/ST
Manufacturer:
Microchip
Mfr.Part #:
MCP3302-CI/ST
Datasheet:
Description:
Analog to Digital Converters (ADCs) TSSOP-14 SMD/SMT number of channels:2 Number of Inputs:2, 4 1.5 B 100 ksps Core Architecture:SAR
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Radiation Hardening | No |
| Number of Elements | 1 |
| Interface | SPI, Serial |
| Output Voltage | 4.1 V |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 4 months ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Number of Channels | 2 |
| Number of Bits | 13 |
| Sampling Rate | 100 ksps |
| Integral Nonlinearity (INL) | 2 LSB |
| Number of Converters | 1 |
| Nominal Supply Current | 300 µA |
| Resolution | 1.5 B |
| Number of A/D Converters | 1 |
| Signal to Noise Ratio (SNR) | 80.02 dB |
| Conversion Rate | 100 ksps |
| Schedule B | 8542390000 |
| Number of Inputs | 2, 4 |
| RoHS | Compliant |
| Packaging | Tube |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Input Type | Differential, Single-Ended |
| Interface Type(Data Interface) | SPI |
| Core Architecture(core/core processor) | SAR |
| Reference Type | External |
| Analog Supply Voltage | 5 V |
| Max Digital Supply Voltage | 5 V |
Stock: 356
Distributors
pcbx
pcbxUnit Price$2.77254
Ext.Price$2.77254
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.77254 | $2.77254 |
| 10 | $2.52699 | $25.26990 |
| 25 | $2.30318 | $57.57950 |
| 50 | $2.23393 | $111.69650 |
