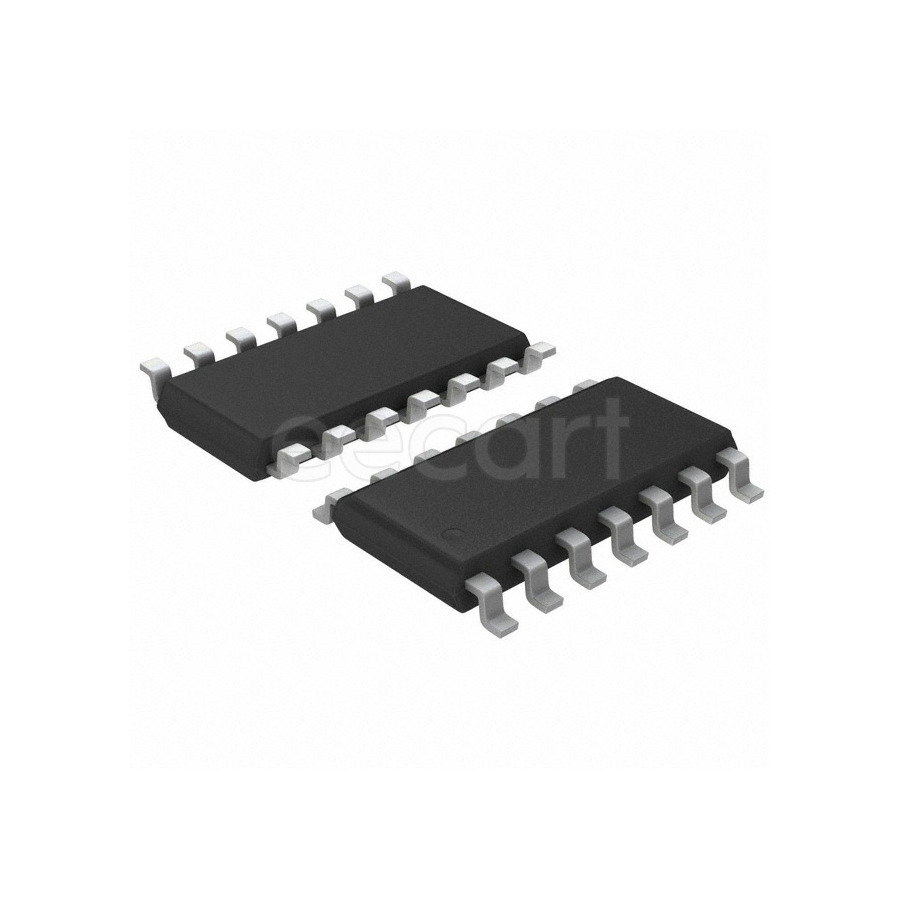

MCP3428-E/SL
Manufacturer:
Microchip
Mfr.Part #:
MCP3428-E/SL
Datasheet:
Description:
Analog to Digital Converters (ADCs) SOIC-14 SMD/SMT number of channels:2 Number of Inputs:4 2 B 15 sps Core Architecture:Sigma-Delta
| Parameter | Value |
|---|---|
| Length | 8.65 mm |
| Width | 3.9 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Height | 1.25 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | PGA, Selectable Address |
| Number of Elements | 1 |
| Core Architecture(core/core processor) | Sigma-Delta |
| Interface | 2-Wire, I²C, Serial |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Number of Channels | 2 |
| Number of Bits | 16 |
| Number of Inputs | 4 |
| Reference Type | Internal |
| Sampling Rate | 15 sps |
| Number of Converters | 1 |
| Nominal Supply Current | 145 µA |
| Number of Analog Inputs | 4 |
| Resolution | 2 B |
| Number of A/D Converters | 1 |
| Reference Voltage | 2.048 V |
| Conversion Rate | 15 sps |
| Schedule B | 8542390000 |
| Max Digital Supply Voltage | 5.5 V |
| Min Digital Supply Voltage | 2.7 V |
| Input Type | Differential |
| Interface Type(Data Interface) | I²C |
| Analog Supply Voltage | 2.7 V to 5.5 V |
| Configuration | MUX-PGA-ADC |
Stock: 1177
Distributors
pcbx
pcbxUnit Price$2.89736
Ext.Price$2.89736
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.89736 | $2.89736 |
| 10 | $2.64203 | $26.42030 |
| 25 | $2.40919 | $60.22975 |
| 50 | $2.29401 | $114.70050 |
| 100 | $2.18434 | $218.43400 |
