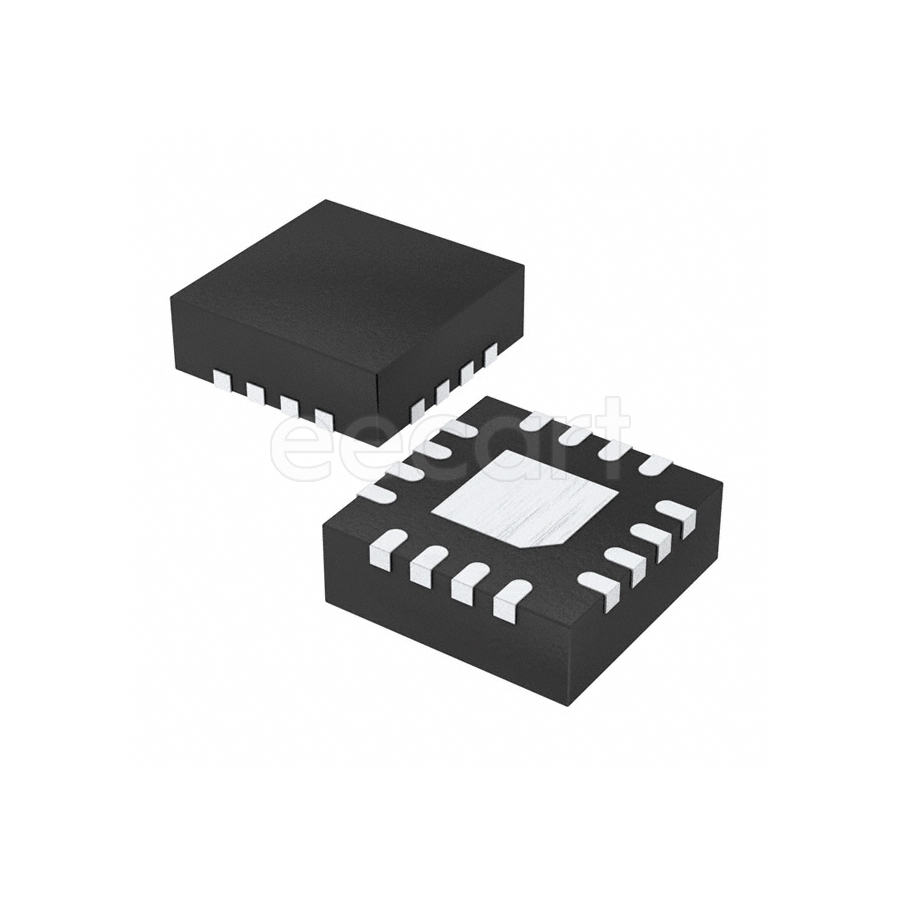

MCP4661T-103E/ML
Manufacturer:
Microchip
Mfr.Part #:
MCP4661T-103E/ML
Datasheet:
Description:
Digital Potentiometers QFN-16 SMD/SMT Number of Taps:257 Number of Circuits:2 10 kΩ 2-Wire, I²C, Serial
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Resistance | 10 kΩ |
| Temperature Coefficient | 150 ppm/°C |
| Radiation Hardening | No |
| Contact Plating | Tin |
| Number of Elements | 2 |
| Interface | 2-Wire, I²C, Serial |
| Memory Type | Non-Volatile |
| Number of Circuits | 2 |
| Operating Supply Voltage | 5 V |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.8 V |
| Max Supply Current | 2.5 µA |
| Number of Taps | 257 |
| Nominal Supply Current | 2.5 µA |
| Number of Positions | 256 |
| Schedule B | 8542390000 |
| RoHS | Compliant |
| Packaging | Reel |
| Operating Supply Current | 2.5 µA |
| Configuration | Potentiometer |
| Number of POTs | Dual |
Stock: 157
Distributors
pcbx
pcbxUnit Price$1.03874
Ext.Price$1.03874
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.03874 | $1.03874 |
| 10 | $0.95034 | $9.50340 |
| 25 | $0.86946 | $21.73650 |
| 50 | $0.82785 | $41.39250 |
| 100 | $0.78824 | $78.82400 |
| 300 | $0.78824 | $236.47200 |
| 500 | $0.78824 | $394.12000 |
| 1000 | $0.78824 | $788.24000 |
| 3000 | $0.78824 | $2364.72000 |
