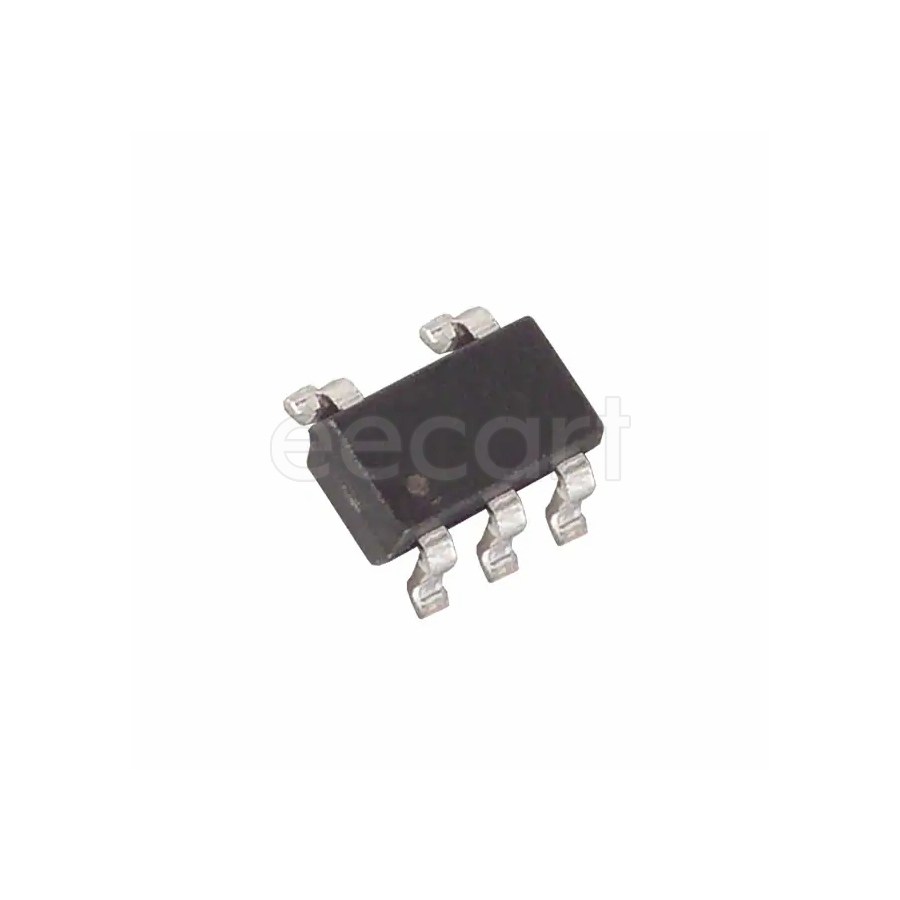

MCP6411T-E/OT
Manufacturer:
Microchip
Mfr.Part #:
MCP6411T-E/OT
Datasheet:
Description:
Amplifiers - Op Amps, Buffer, Instrumentation SOT-23 SMD/SMT Linear Amplifier Number of Circuits:1
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Output Current | 22 mA |
| Number of Circuits | 1 |
| Bandwidth | 1 MHz |
| Output Type | Rail-to-Rail |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.72 V |
| Slew Rate | 500 mV/µs |
| Common Mode Rejection Ratio (CMRR) | 90 dB |
| Operating Supply Current | 47 µA |
| Input Bias Current | 800 pA |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage (Vos) | 1 mV |
| Power Supply Rejection Ratio (PSRR) | 90 dB |
| Input Voltage Noise Density | 32 nV/sqrt Hz |
| Schedule B | 8542330000 |
| Amplifier Type | Linear Amplifier |
Stock: 12246
Distributors
pcbx
pcbxUnit Price$0.34454
Ext.Price$0.34454
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.34454 | $0.34454 |
| 10 | $0.31507 | $3.15070 |
| 25 | $0.28811 | $7.20275 |
| 50 | $0.27498 | $13.74900 |
| 100 | $0.26246 | $26.24600 |
| 300 | $0.26246 | $78.73800 |
| 500 | $0.26246 | $131.23000 |
| 1000 | $0.26246 | $262.46000 |
| 3000 | $0.26246 | $787.38000 |
