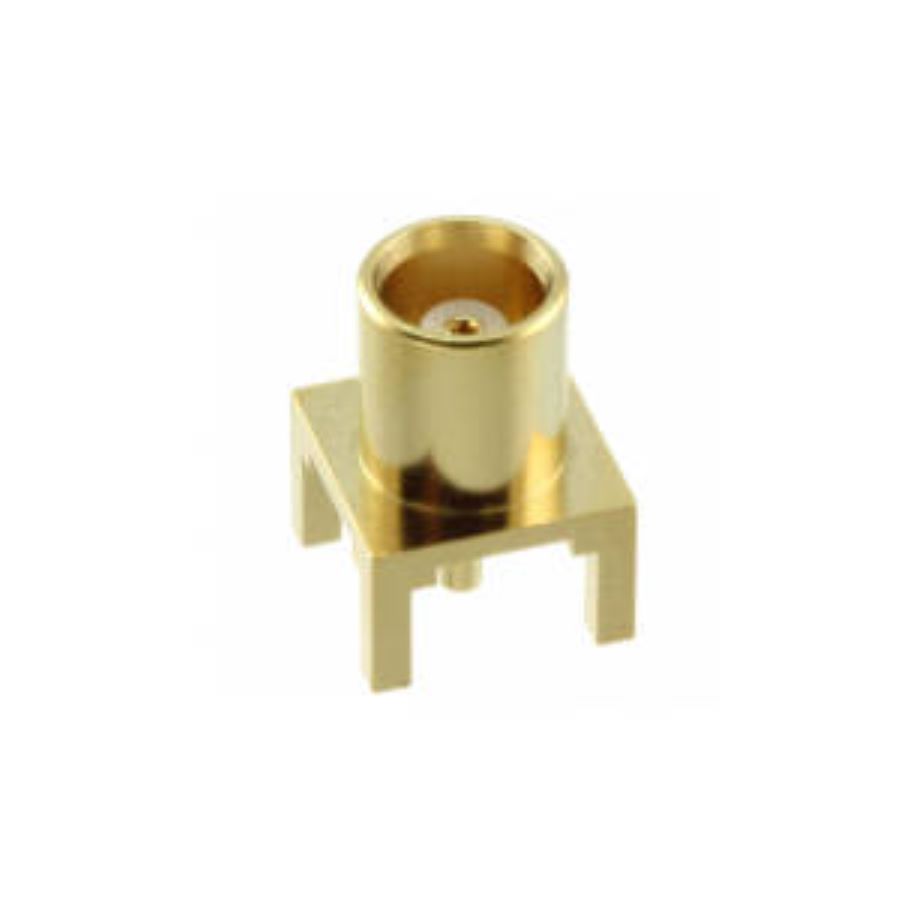

MCX-J-P-H-ST-TH1
Manufacturer:
Samtec
Mfr.Part #:
MCX-J-P-H-ST-TH1
Datasheet:
Description:
RF / Coaxial Connectors Through Hole Socket 50 Ω
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tray |
| Voltage Rating | 335 V |
| Depth | 6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Brass |
| Frequency | 6 GHz |
| Orientation | Straight |
| Gender | Jack (Socket) |
| Body Material | Brass |
| Connector Type | Socket |
| Max Frequency | 6 GHz |
| Insulation Material | Polytetrafluoroethylene |
| Fastening Type | Snap |
| Housing Color | Gold |
| Body Plating | Gold |
| RF Series | MCX |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 4557
Distributors
pcbx
pcbxUnit Price$1.60167
Ext.Price$1.60167
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.60167 | $1.60167 |
| 10 | $1.47411 | $14.74110 |
| 25 | $1.42457 | $35.61425 |
| 50 | $1.38742 | $69.37100 |
| 100 | $1.35037 | $135.03700 |
| 300 | $1.30713 | $392.13900 |
| 500 | $1.26528 | $632.64000 |
| 1000 | $1.22914 | $1229.14000 |
