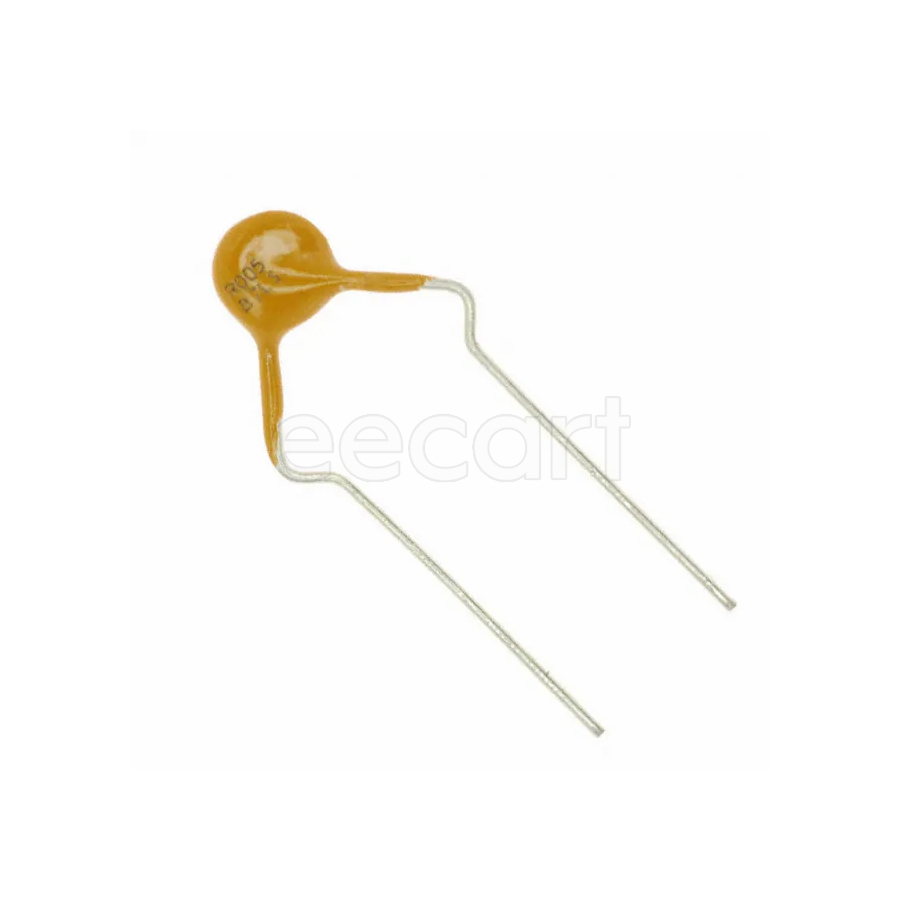

MF-R005-0
Manufacturer:
Bourns
Mfr.Part #:
MF-R005-0
Datasheet:
Description:
PTC Resettable Fuses 8.0mmD×3.1mmT Through Hole Hold Current:50 mA Voltage Rating:60 V Trip Current:100 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 60 V |
| Length | 15.9 mm |
| Width | 8 mm |
| Termination | Radial |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 11.1 Ω |
| Height | 3.1 mm |
| Voltage Rating | 60 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 400 µm |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Lead Length | 7.6 mm |
| Number of Terminals | 2 |
| Current Rating | 40 A |
| Max Current Rating | 40 A |
| Approvals | CSA |
| Operating Supply Voltage | 60 V |
| Power Dissipation | 220 mW |
| Body Material | Polymer |
| Hold Current | 50 mA |
| Time to Trip | 5 s |
| Trip Current | 100 mA |
| Wire/Cable Diameter | 405 µm |
| Lead Spacing | 5.1 mm |
| Height - Seated (Max) | 8.3 mm |
| Packaging | Ammo Pack |
| Max Supply Voltage | 60 V |
| Maximum Resistance 1 Hour (R1max) | 22 Ω |
| Minimum Resistance Initial (Rmin) | 7.3 Ω |
Stock: 5956
Distributors
pcbx
pcbxUnit Price$0.23756
Ext.Price$0.23756
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23756 | $0.23756 |
| 10 | $0.18143 | $1.81430 |
| 50 | $0.15029 | $7.51450 |
| 100 | $0.13872 | $13.87200 |
| 500 | $0.11506 | $57.53000 |
| 1000 | $0.10612 | $106.12000 |
| 3000 | $0.09653 | $289.59000 |
| 5000 | $0.08781 | $439.05000 |
