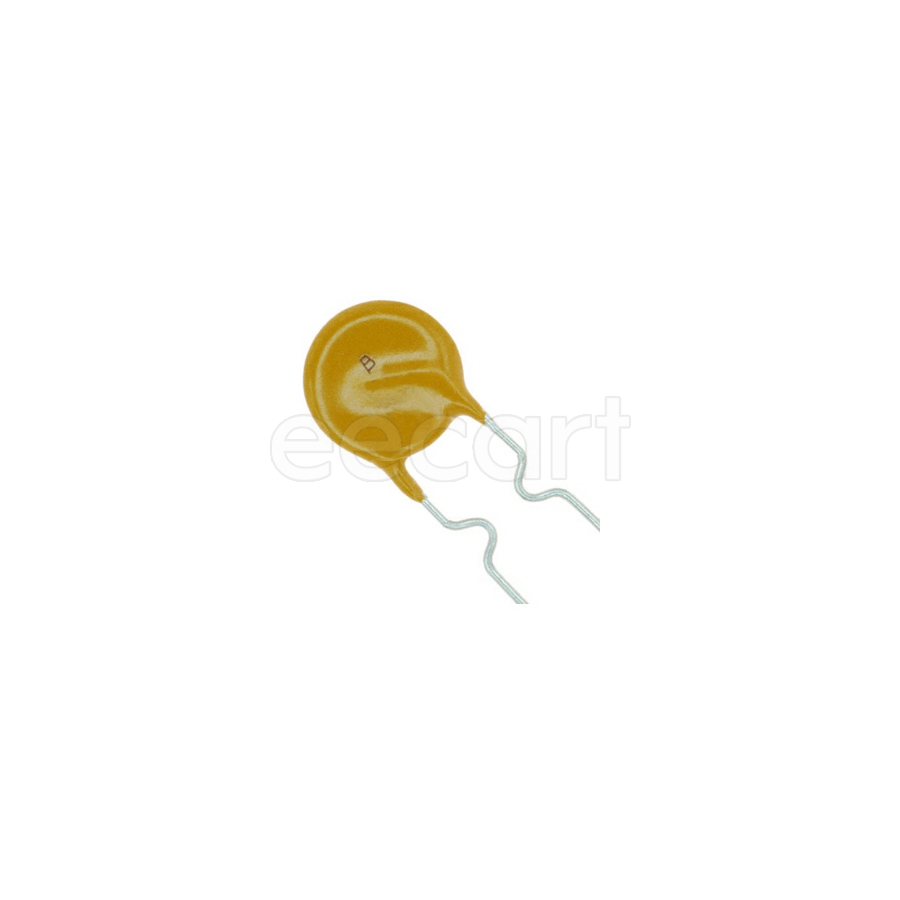

MF-R050-0-99
Manufacturer:
Bourns
Mfr.Part #:
MF-R050-0-99
Datasheet:
Description:
PTC Resettable Fuses Radial Through Hole Hold Current:500 mA Voltage Rating:60 V Trip Current:1 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 60 V |
| Width | 7.9 mm |
| Termination | Radial |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 60 V |
| Resistance | 770 mΩ |
| Voltage Rating | 60 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 510 µm |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 7.6 mm |
| Number of Terminals | 2 |
| Terminal Pitch | 5.1 mm |
| Current Rating | 40 A |
| Max Current Rating | 40 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Operating Supply Voltage | 60 V |
| Max Power Dissipation | 750 mW |
| Power Dissipation | 750 mW |
| Hold Current | 500 mA |
| Time to Trip | 4 s |
| Trip Current | 1 A |
| Max Supply Voltage | 60 V |
| Maximum Resistance 1 Hour (R1max) | 1.17 Ω |
| Minimum Resistance Initial (Rmin) | 410 mΩ |
| Lead Spacing | 5.1 mm |
| Height - Seated (Max) | 13.7 mm |
| Packaging | Bulk |
