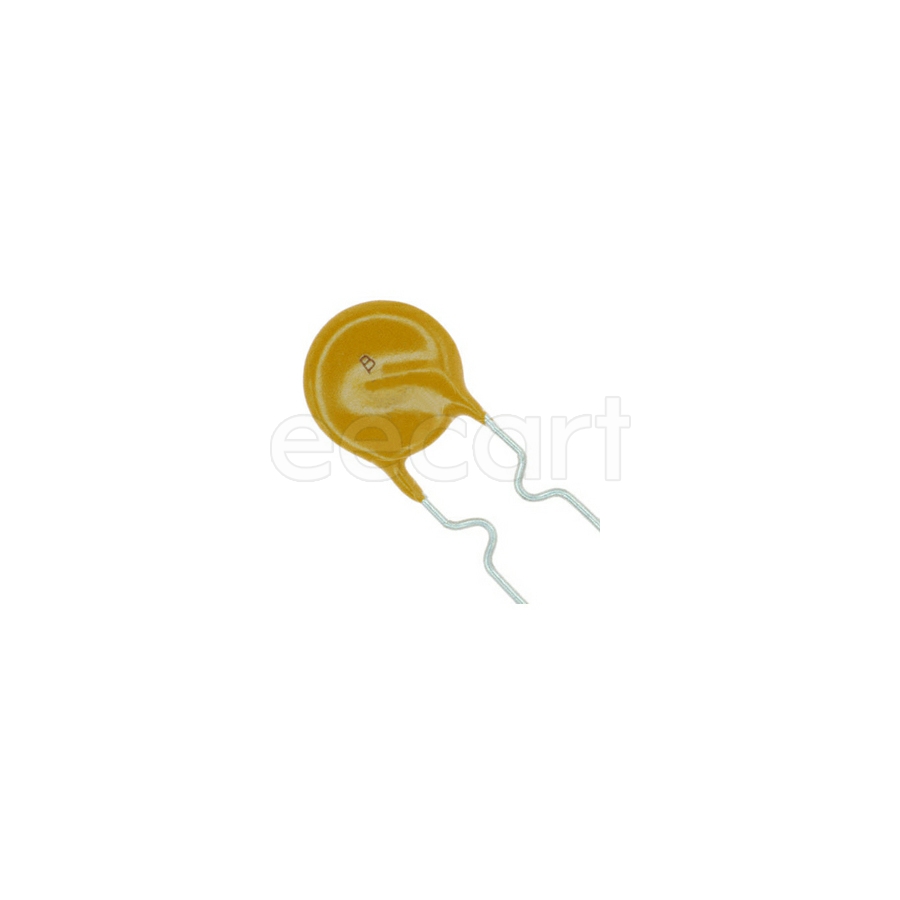

MF-R090
Manufacturer:
Bourns
Mfr.Part #:
MF-R090
Datasheet:
Description:
PTC Resettable Fuses 11.7mmD×3.1mmT Through Hole Hold Current:900 mA Voltage Rating:60 V Trip Current:1.8 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 60 V |
| Width | 11.7 mm |
| Termination | Radial |
| Diameter | 11.7 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 60 V |
| Resistance | 310 mΩ |
| Height | 16.7 mm |
| Packaging | Bulk |
| Voltage Rating | 60 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Diameter | 510 µm |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 7.6 mm |
| Number of Terminals | 2 |
| Terminal Pitch | 5.1 mm |
| Current Rating | 900 mA |
| Max Current Rating | 40 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Operating Supply Voltage | 60 V |
| Max Power Dissipation | 1 W |
| Power Dissipation | 1 W |
| Body Material | Polymer |
| Hold Current | 900 mA |
| Time to Trip | 7.2 s |
| Trip Current | 1.8 A |
| Wire/Cable Diameter | 510 µm |
| Ambient Temperature Range High | 85 °C |
| Schedule B | 8536100040 |
| Max Supply Voltage | 60 V |
| Maximum Resistance 1 Hour (R1max) | 470 mΩ |
| Minimum Resistance Initial (Rmin) | 140 mΩ |
| Lead Spacing | 5.1 mm |
| Height - Seated (Max) | 16.7 mm |
Stock: 1394
Distributors
pcbx
pcbxUnit Price$0.13411
Ext.Price$0.13411
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13411 | $0.13411 |
| 10 | $0.11944 | $1.19440 |
| 50 | $0.10637 | $5.31850 |
| 100 | $0.09393 | $9.39300 |
| 500 | $0.08294 | $41.47000 |
| 1000 | $0.07873 | $78.73000 |
| 3000 | $0.07474 | $224.22000 |
| 5000 | $0.07095 | $354.75000 |
