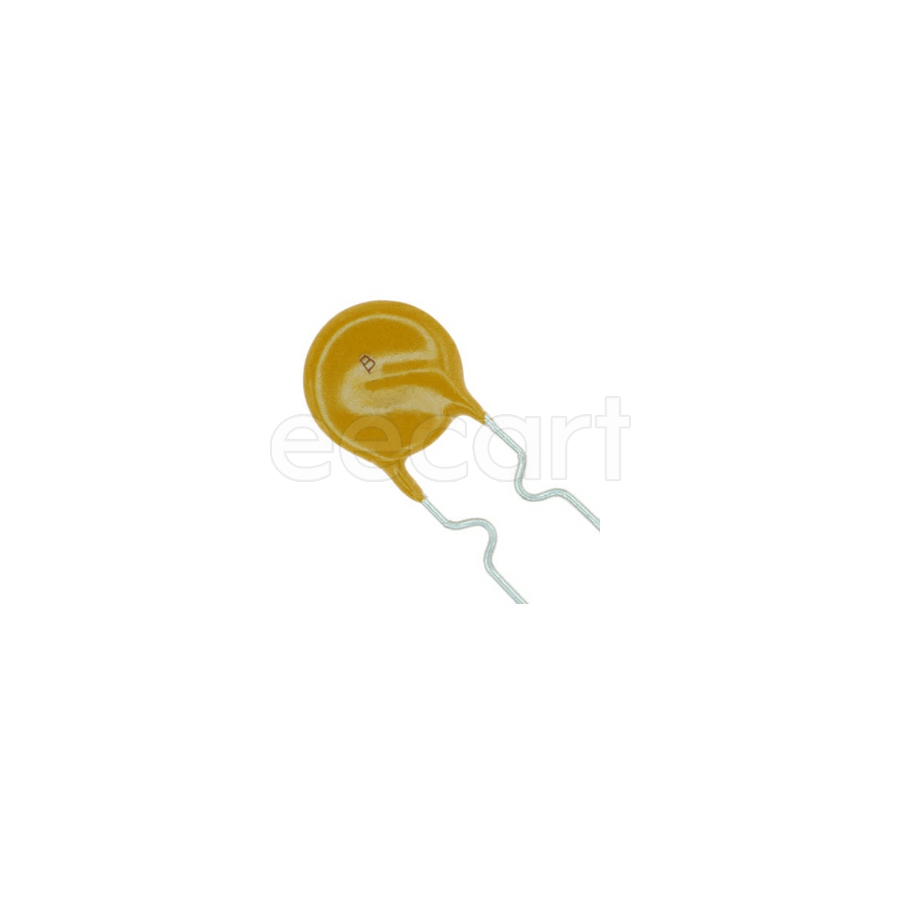

MF-R135
Manufacturer:
Bourns
Mfr.Part #:
MF-R135
Datasheet:
Description:
PTC Resettable Fuses 8.9mmD×3.0mmT Through Hole Hold Current:1.35 A Voltage Rating:30 V Trip Current:2.7 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Width | 8.9 mm |
| Termination | Radial |
| Diameter | 8.9 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 115 mΩ |
| Height | 18.9 mm |
| Packaging | Bulk |
| Voltage Rating | 30 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 510 µm |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 7.6 mm |
| Number of Terminals | 2 |
| Terminal Pitch | 5.1 mm |
| Current Rating | 1.35 A |
| Max Current Rating | 40 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Operating Supply Voltage | 30 V |
| Power Dissipation | 800 mW |
| Body Material | Polymer |
| Hold Current | 1.35 A |
| Time to Trip | 7.3 s |
| Trip Current | 2.7 A |
| Wire/Cable Diameter | 510 µm |
| Schedule B | 8536100040 |
| Max Supply Voltage | 30 V |
| Maximum Resistance 1 Hour (R1max) | 170 mΩ |
| Minimum Resistance Initial (Rmin) | 65 mΩ |
| Lead Spacing | 5.1 mm |
| Height - Seated (Max) | 18.9 mm |
Stock: 371
Distributors
pcbx
pcbxUnit Price$0.13968
Ext.Price$0.13968
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13968 | $0.13968 |
| 10 | $0.12558 | $1.25580 |
| 50 | $0.11290 | $5.64500 |
| 100 | $0.09366 | $9.36600 |
| 500 | $0.07770 | $38.85000 |
| 1000 | $0.07364 | $73.64000 |
| 3000 | $0.06979 | $209.37000 |
| 5000 | $0.06615 | $330.75000 |
