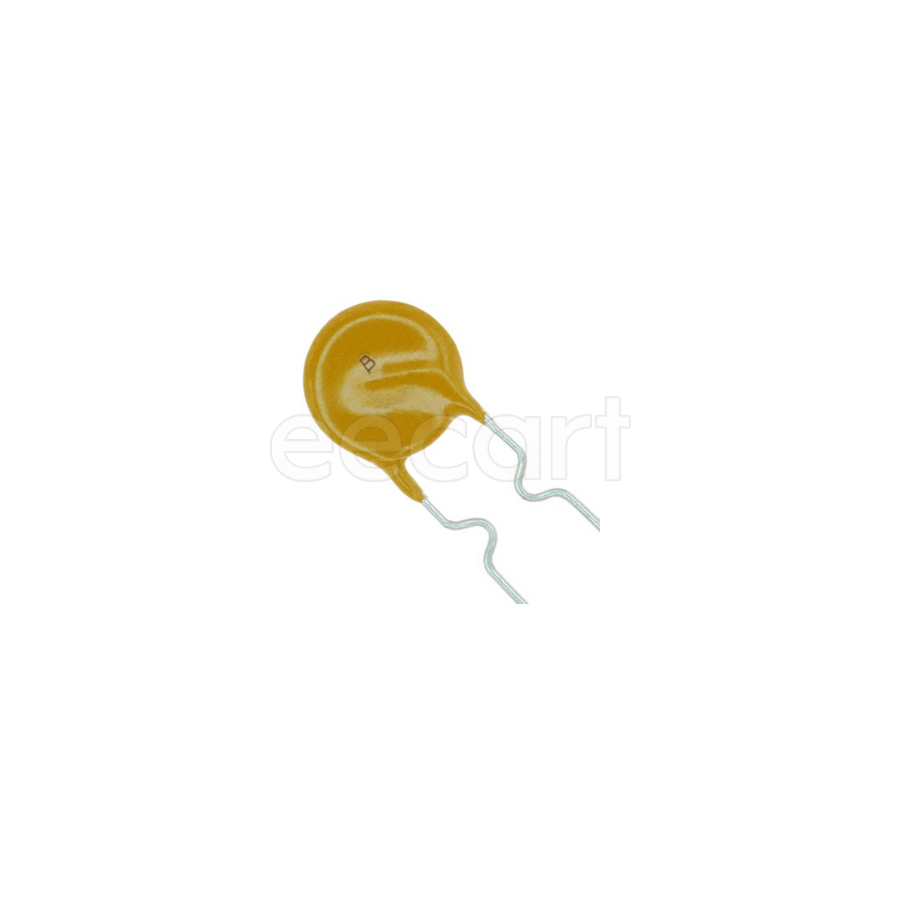

MF-R160
Manufacturer:
Bourns
Mfr.Part #:
MF-R160
Datasheet:
Description:
PTC Resettable Fuses 10.20mmL×3.00mmW×16.8mmH Through Hole Hold Current:1.6 A Voltage Rating:30 V Trip Current:3.2 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Width | 10.2 mm |
| Termination | Radial |
| Diameter | 10.2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 30 V |
| Resistance | 105 mΩ |
| Height | 16.8 mm |
| Packaging | Bulk |
| Voltage Rating | 30 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 510 µm |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Lead Length | 7.6 mm |
| Number of Terminals | 2 |
| Current Rating | 1.6 A |
| Max Current Rating | 40 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Operating Supply Voltage | 30 V |
| Max Power Dissipation | 900 mW |
| Power Dissipation | 900 mW |
| Body Material | Polymer |
| Hold Current | 1.6 A |
| Time to Trip | 8 s |
| Trip Current | 3.2 A |
| Wire/Cable Diameter | 510 µm |
| Schedule B | 8536100040 |
| Max Supply Voltage | 30 V |
| Maximum Resistance 1 Hour (R1max) | 150 mΩ |
| Minimum Resistance Initial (Rmin) | 55 mΩ |
| Lead Spacing | 5.1 mm |
| Height - Seated (Max) | 16.8 mm |
Stock: 287
Distributors
pcbx
pcbxUnit Price$0.12643
Ext.Price$0.12643
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12643 | $0.12643 |
| 10 | $0.11219 | $1.12190 |
| 50 | $0.09955 | $4.97750 |
| 100 | $0.08745 | $8.74500 |
| 500 | $0.07682 | $38.41000 |
| 1000 | $0.07276 | $72.76000 |
| 3000 | $0.06891 | $206.73000 |
| 5000 | $0.06527 | $326.35000 |
