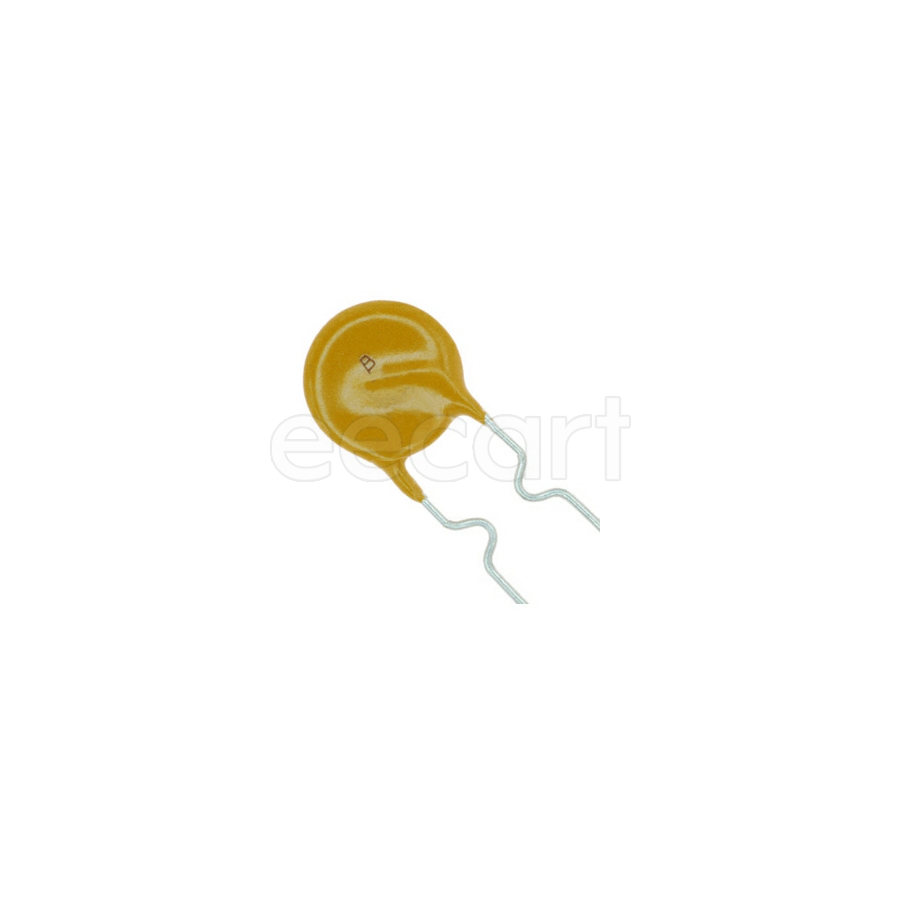

MF-R185
Manufacturer:
Bourns
Mfr.Part #:
MF-R185
Datasheet:
Description:
PTC Resettable Fuses 12.00mmD×3.00mmT Through Hole Hold Current:1.85 A Voltage Rating:30 V Trip Current:3.7 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Width | 12 mm |
| Termination | Radial |
| Diameter | 12 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 30 V |
| Resistance | 70 mΩ |
| Height | 18.4 mm |
| Packaging | Bulk |
| Voltage Rating | 30 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 510 µm |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 7.6 mm |
| Number of Terminals | 2 |
| Terminal Pitch | 5.1 mm |
| Current Rating | 40 A |
| Max Current Rating | 40 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Operating Supply Voltage | 30 V |
| Max Power Dissipation | 1 W |
| Power Dissipation | 1 W |
| Body Material | Polymer |
| Hold Current | 1.85 A |
| Time to Trip | 8.7 s |
| Trip Current | 3.7 A |
| Wire/Cable Diameter | 510 µm |
| Schedule B | 8536100040 |
| Max Supply Voltage | 30 V |
| Maximum Resistance 1 Hour (R1max) | 110 mΩ |
| Minimum Resistance Initial (Rmin) | 40 mΩ |
| Lead Spacing | 5.1 mm |
| Height - Seated (Max) | 18.4 mm |
Stock: 1063
Distributors
pcbx
pcbxUnit Price$0.14045
Ext.Price$0.14045
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14045 | $0.14045 |
| 10 | $0.12571 | $1.25710 |
| 50 | $0.11251 | $5.62550 |
| 100 | $0.10004 | $10.00400 |
| 500 | $0.08895 | $44.47500 |
| 1000 | $0.08482 | $84.82000 |
| 3000 | $0.08088 | $242.64000 |
| 5000 | $0.07713 | $385.65000 |
