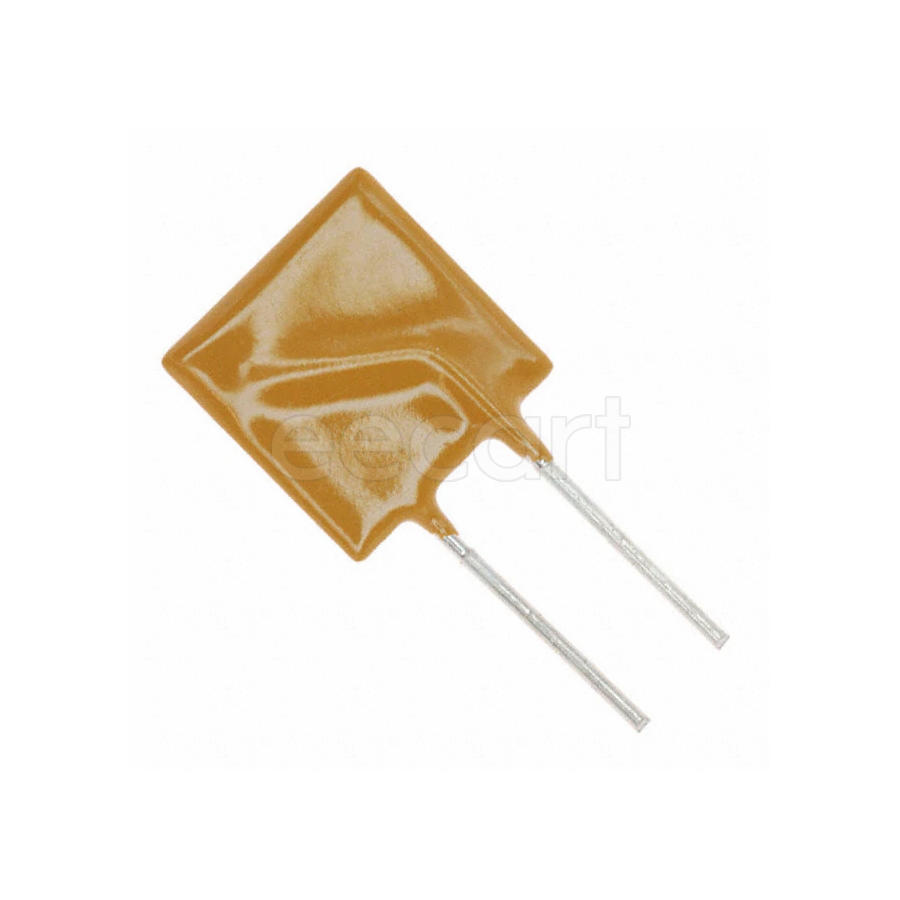

MF-R250-2
Manufacturer:
Bourns
Mfr.Part #:
MF-R250-2
Datasheet:
Description:
PTC Resettable Fuses 12.00mmL×3.00mmT×18.30mmH Through Hole Hold Current:2.5 A Voltage Rating:30 V Trip Current:5 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Width | 3 mm |
| Termination | Radial |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 48 mΩ |
| Height | 18.3 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 810 µm |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Terminals | 2 |
| Terminal Pitch | 5.1 mm |
| Current Rating | 40 A |
| Max Current Rating | 40 A |
| Approvals | CSA, TUV, UL |
| Operating Supply Voltage | 30 V |
| Power Dissipation | 1.2 W |
| Hold Current | 2.5 A |
| Time to Trip | 10.3 s |
| Trip Current | 5 A |
| Schedule B | 8536100040 |
| Max Supply Voltage | 30 V |
| Maximum Resistance 1 Hour (R1max) | 70 mΩ |
| Minimum Resistance Initial (Rmin) | 25 mΩ |
| Lead Spacing | 5.1 mm |
| Height - Seated (Max) | 18.3 mm |
Stock: 5137
Distributors
pcbx
pcbxUnit Price$0.45653
Ext.Price$0.45653
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45653 | $0.45653 |
| 10 | $0.42148 | $4.21480 |
| 25 | $0.38390 | $9.59750 |
| 50 | $0.34967 | $17.48350 |
| 100 | $0.32316 | $32.31600 |
| 300 | $0.29407 | $88.22100 |
| 500 | $0.26760 | $133.80000 |
| 1000 | $0.23083 | $230.83000 |
| 3000 | $0.21630 | $648.90000 |
| 5000 | $0.19920 | $996.00000 |
