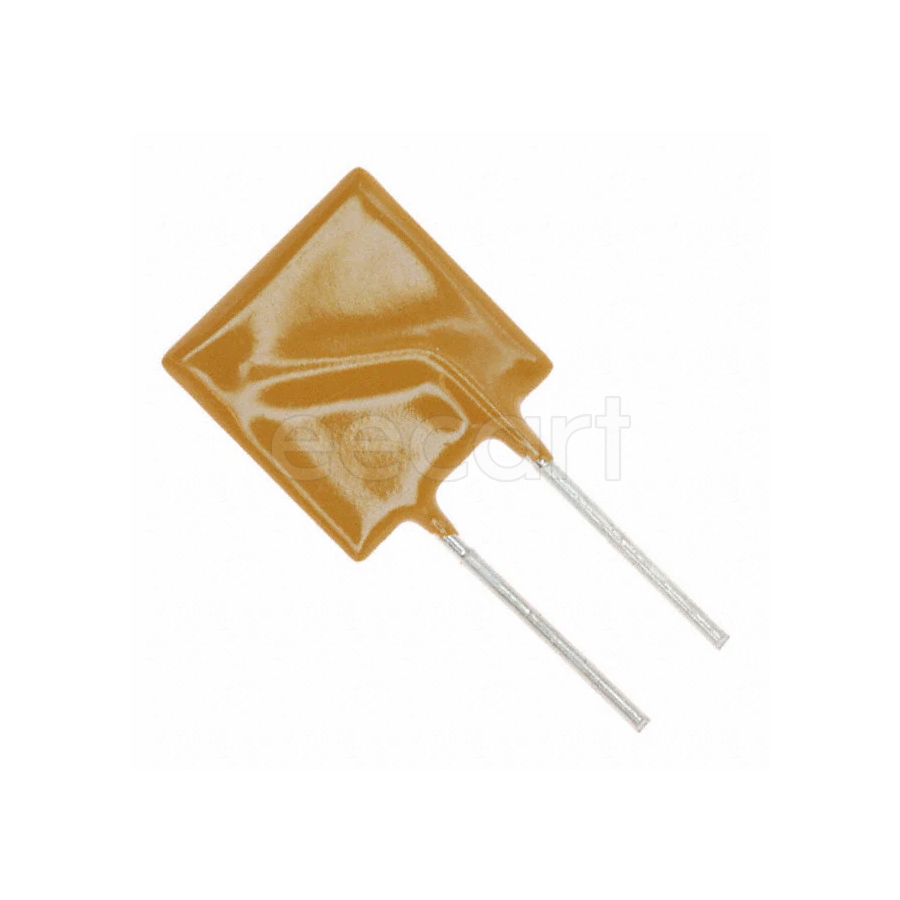

MF-R300-2
Manufacturer:
Bourns
Mfr.Part #:
MF-R300-2
Datasheet:
Description:
PTC Resettable Fuses 12.00mmL×3.00mmW×18.30mmW Through Hole Hold Current:3 A Voltage Rating:30 V Trip Current:6 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | Radial |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 50 mΩ |
| Height | 3 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 810 µm |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Number of Terminals | 2 |
| Current Rating | 40 A |
| Max Current Rating | 40 A |
| Approvals | CSA, TUV, UL |
| Operating Supply Voltage | 30 V |
| Power Dissipation | 2 W |
| Hold Current | 3 A |
| Time to Trip | 10.8 s |
| Trip Current | 6 A |
| Schedule B | 8536100040 |
| Max Supply Voltage | 30 V |
| Maximum Resistance 1 Hour (R1max) | 80 mΩ |
| Minimum Resistance Initial (Rmin) | 20 mΩ |
| Lead Spacing | 5.1 mm |
| Height - Seated (Max) | 18.3 mm |
Stock: 8430
Distributors
pcbx
pcbxUnit Price$0.31290
Ext.Price$0.31290
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31290 | $0.31290 |
| 10 | $0.28384 | $2.83840 |
| 25 | $0.25832 | $6.45800 |
| 50 | $0.23510 | $11.75500 |
| 100 | $0.21715 | $21.71500 |
| 300 | $0.19792 | $59.37600 |
| 500 | $0.18039 | $90.19500 |
| 1000 | $0.15816 | $158.16000 |
| 3000 | $0.13936 | $418.08000 |
