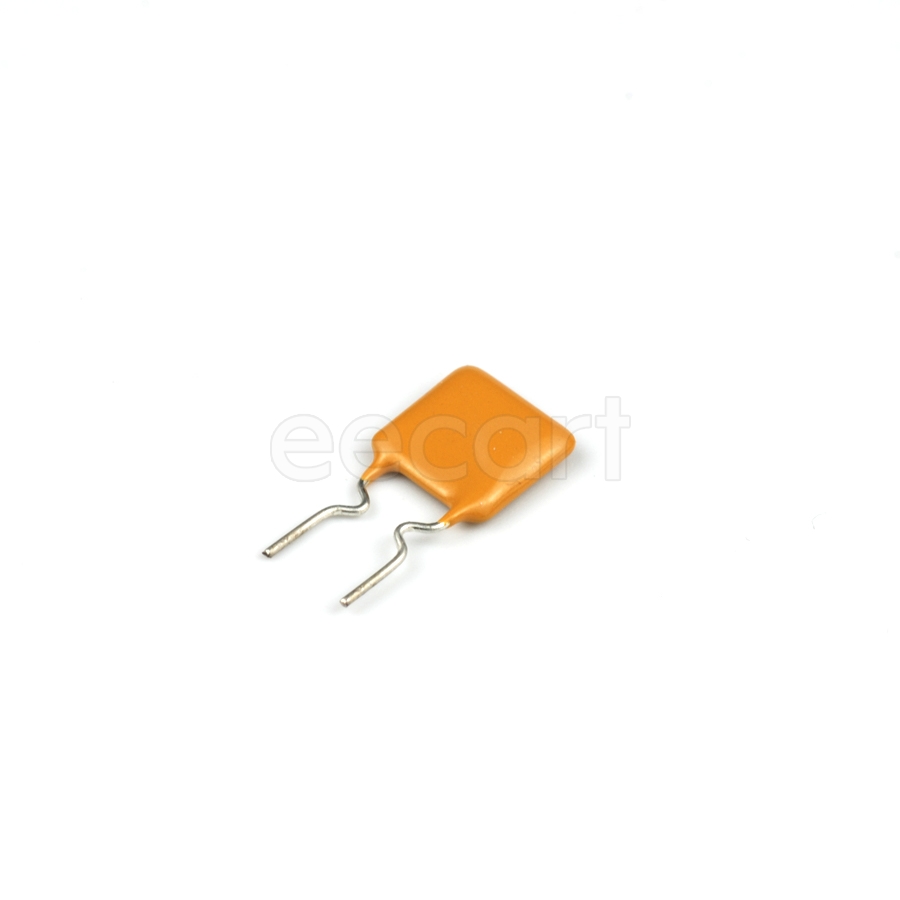

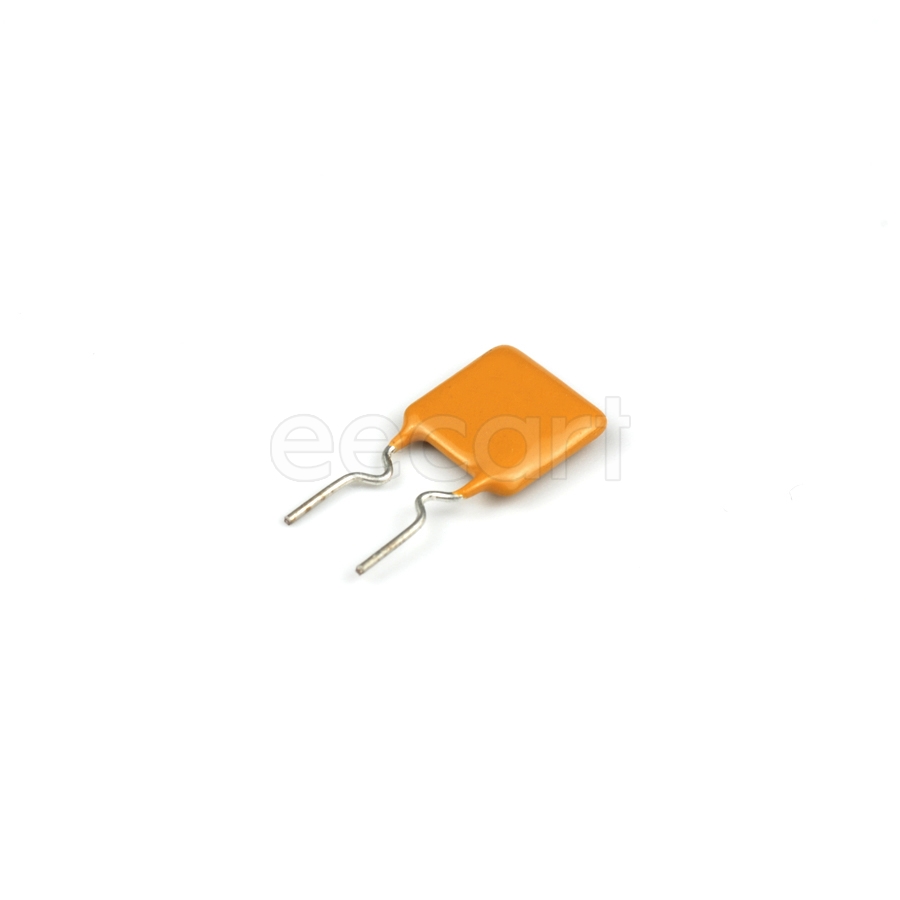

MF-R300
Manufacturer:
Bourns
Mfr.Part #:
MF-R300
Datasheet:
Description:
PTC Resettable Fuses Radial Through Hole Hold Current:3 A Voltage Rating:30 V Trip Current:6 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Height - Seated (Max) | 18.3 mm |
| Length | 12 mm |
| Width | 11.4 mm |
| Termination | Radial |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 30 V |
| Resistance | 50 mΩ |
| Height | 18.3 mm |
| Packaging | Bulk |
| Voltage Rating | 30 V |
| Thickness | 3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 810 µm |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 7.6 mm |
| Number of Terminals | 2 |
| Terminal Pitch | 5.1 mm |
| Current Rating | 3 A |
| Max Current Rating | 40 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Operating Supply Voltage | 30 V |
| Max Power Dissipation | 2 W |
| Power Dissipation | 2 W |
| Body Material | Polymer |
| Hold Current | 3 A |
| Time to Trip | 10.8 s |
| Trip Current | 6 A |
| Wire/Cable Diameter | 810 µm |
| Ambient Temperature Range High | 85 °C |
| Schedule B | 8536100040 |
| Maximum Resistance 1 Hour (R1max) | 80 mΩ |
| Minimum Resistance Initial (Rmin) | 20 mΩ |
| Lead Spacing | 5.1 mm |
Stock: 7716
Distributors
pcbx
pcbxUnit Price$0.30008
Ext.Price$0.30008
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30008 | $0.30008 |
| 10 | $0.27443 | $2.74430 |
| 25 | $0.24982 | $6.24550 |
| 50 | $0.22741 | $11.37050 |
| 100 | $0.21031 | $21.03100 |
| 300 | $0.19151 | $57.45300 |
| 500 | $0.17440 | $87.20000 |
| 1000 | $0.16073 | $160.73000 |
| 3000 | $0.15902 | $477.06000 |
