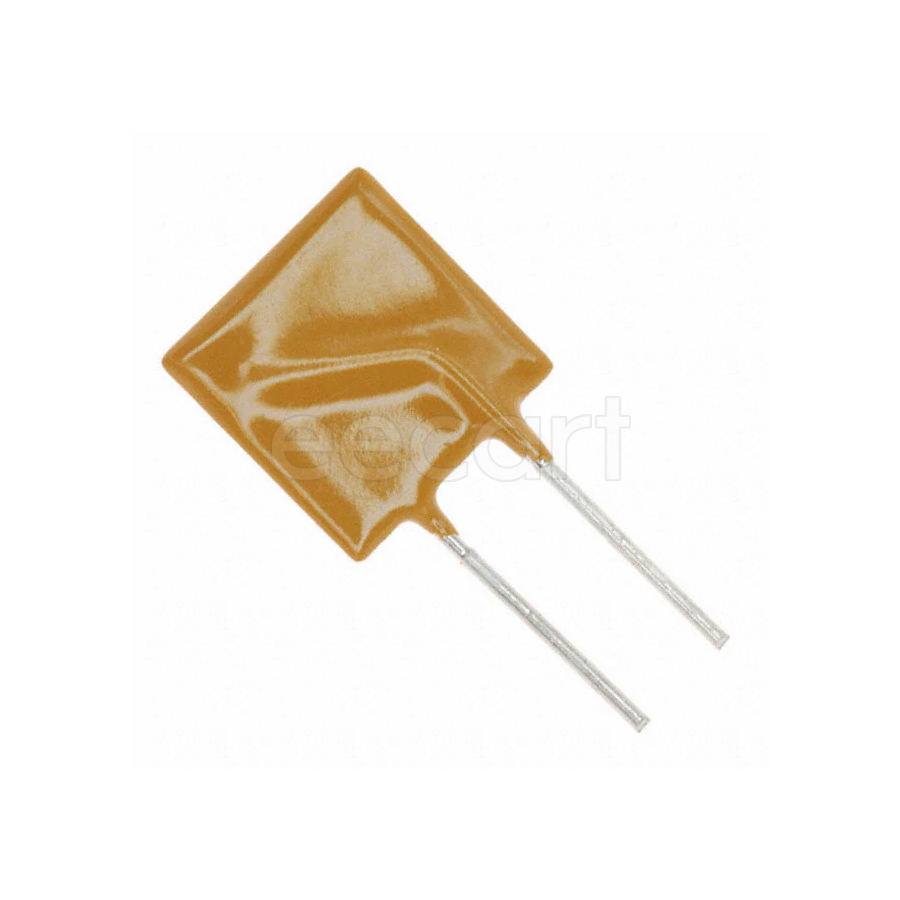

MF-R400
Manufacturer:
Bourns
Mfr.Part #:
MF-R400
Datasheet:
Description:
PTC Resettable Fuses 14.40mmL×3.00mmW×24.80mmH Through Hole Hold Current:4 A Voltage Rating:30 V Trip Current:8 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 14.4 mm |
| Width | 14 mm |
| Termination | Radial |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 30 V |
| Resistance | 30 mΩ |
| Height | 24.8 mm |
| Packaging | Bulk |
| Voltage Rating | 30 V |
| Thickness | 3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 810 µm |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Lead Length | 7.6 mm |
| Number of Terminals | 2 |
| Current Rating | 4 A |
| Max Current Rating | 40 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Operating Supply Voltage | 30 V |
| Max Power Dissipation | 2.5 W |
| Power Dissipation | 2.5 W |
| Body Material | Polymer |
| Hold Current | 4 A |
| Time to Trip | 12.7 s |
| Trip Current | 8 A |
| Wire/Cable Diameter | 810 µm |
| Schedule B | 8536100040 |
| Max Supply Voltage | 30 V |
| Maximum Resistance 1 Hour (R1max) | 50 mΩ |
| Minimum Resistance Initial (Rmin) | 10 mΩ |
| Lead Spacing | 5.1 mm |
| Height - Seated (Max) | 24.8 mm |
Stock: 20738
Distributors
pcbx
pcbxUnit Price$0.36921
Ext.Price$0.36921
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36921 | $0.36921 |
| 10 | $0.28281 | $2.82810 |
| 25 | $0.25760 | $6.44000 |
| 50 | $0.23463 | $11.73150 |
| 100 | $0.21655 | $21.65500 |
| 300 | $0.19720 | $59.16000 |
| 500 | $0.17957 | $89.78500 |
| 1000 | $0.16559 | $165.59000 |
| 3000 | $0.15058 | $451.74000 |
| 5000 | $0.13693 | $684.65000 |
