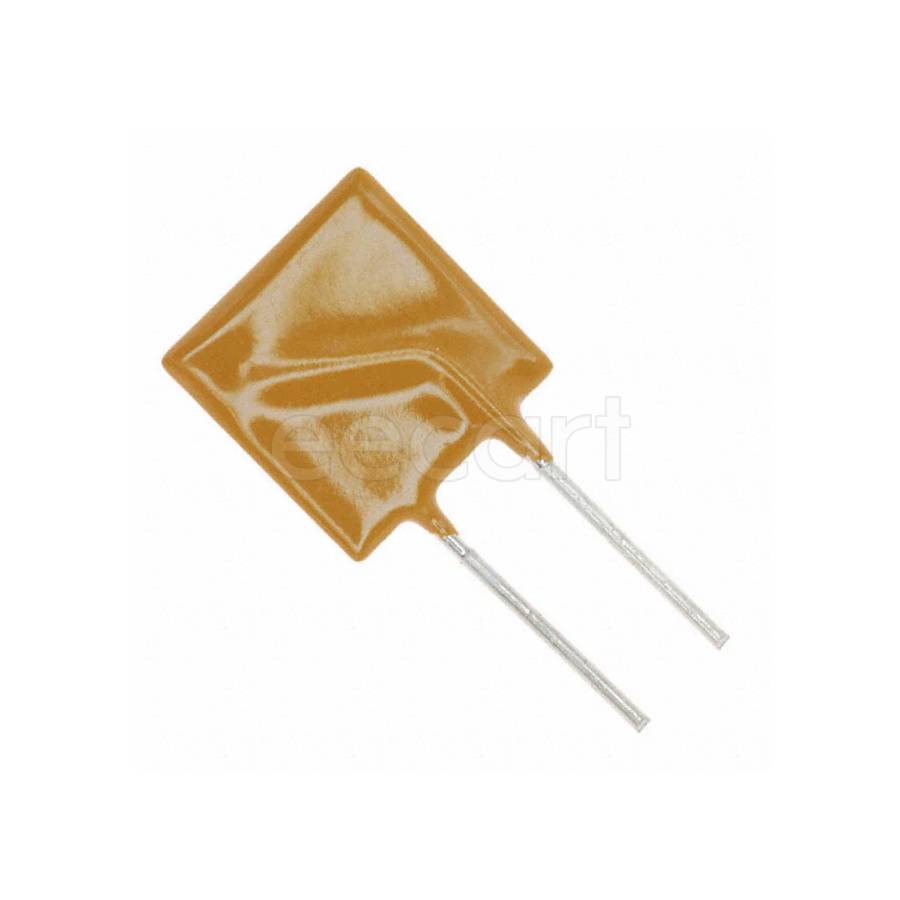

MF-R500
Manufacturer:
Bourns
Mfr.Part #:
MF-R500
Datasheet:
Description:
PTC Resettable Fuses 17.40mmL×3.00mmW×24.90mmH Through Hole Hold Current:5 A Voltage Rating:30 V Trip Current:10 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 14.4 mm |
| Width | 16.5 mm |
| Termination | Radial |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 30 V |
| Resistance | 30 mΩ |
| Height | 24.9 mm |
| Packaging | Bulk |
| Voltage Rating | 30 V |
| Thickness | 3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 810 µm |
| Lead Pitch | 10.2 mm |
| REACH SVHC | No SVHC |
| Lead Length | 7.6 mm |
| Number of Terminals | 2 |
| Current Rating | 5 A |
| Max Current Rating | 40 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Operating Supply Voltage | 30 V |
| Max Power Dissipation | 3 W |
| Power Dissipation | 3 W |
| Body Material | Polymer |
| Hold Current | 5 A |
| Time to Trip | 14.5 s |
| Trip Current | 10 A |
| Wire/Cable Diameter | 810 µm |
| Max Supply Voltage | 30 V |
| Maximum Resistance 1 Hour (R1max) | 50 mΩ |
| Minimum Resistance Initial (Rmin) | 10 mΩ |
| Lead Spacing | 10.2 mm |
| Height - Seated (Max) | 24.9 mm |
Stock: 80
Distributors
pcbx
pcbxUnit Price$0.50890
Ext.Price$0.50890
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50890 | $0.50890 |
| 10 | $0.40915 | $4.09150 |
| 25 | $0.37529 | $9.38225 |
| 50 | $0.34423 | $17.21150 |
| 100 | $0.31574 | $31.57400 |
| 300 | $0.30347 | $91.04100 |
| 500 | $0.29168 | $145.84000 |
| 1000 | $0.27664 | $276.64000 |
