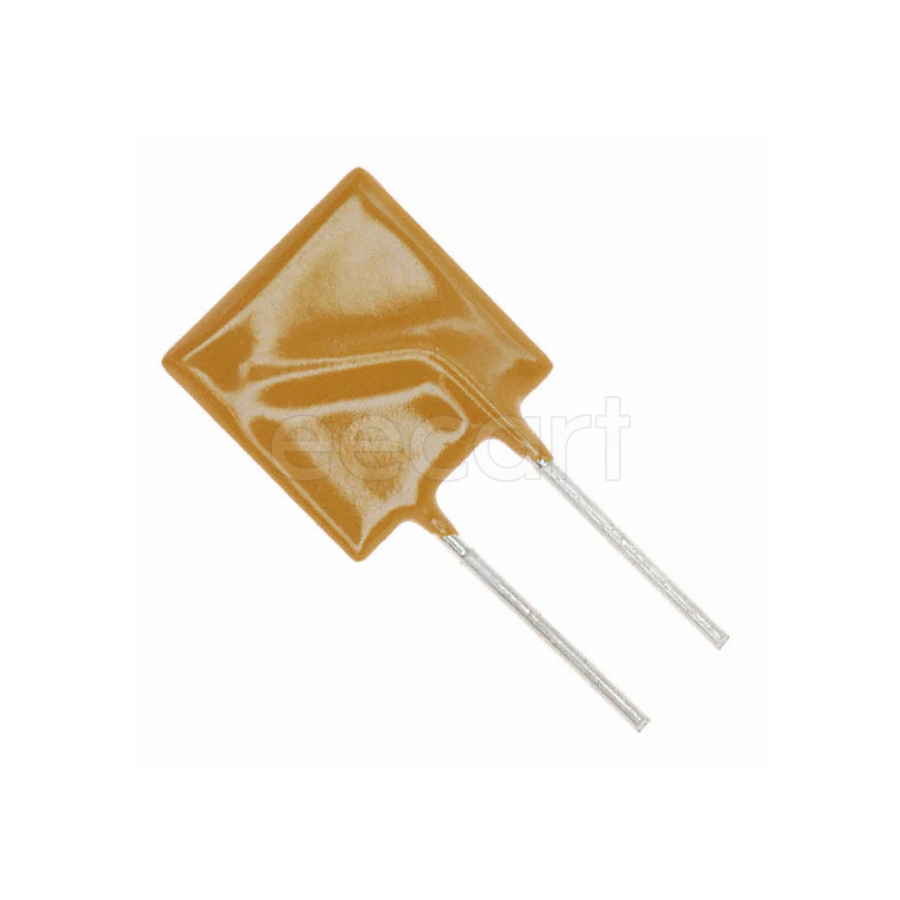

MF-RHT050-0
Manufacturer:
Bourns
Mfr.Part #:
MF-RHT050-0
Datasheet:
Description:
PTC Resettable Fuses 7.40mmL×3.00mmW×12.70mmH Through Hole Hold Current:500 mA Voltage Rating:30 V Trip Current:920 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Height - Seated (Max) | 12.7 mm |
| Width | 3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 480 mΩ |
| Height | 12.7 mm |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Max Current Rating | 40 A |
| Max Supply Voltage | 30 V |
| Hold Current | 500 mA |
| Time to Trip | 2.5 s |
| Trip Current | 920 mA |
| Schedule B | 8536100040 |
| Maximum Resistance 1 Hour (R1max) | 1.1 Ω |
| Minimum Resistance Initial (Rmin) | 480 mΩ |
| Lead Spacing | 5.1 mm |
| Voltage Rating | 30 V |
Stock: 25
Distributors
pcbx
pcbxUnit Price$0.48799
Ext.Price$0.48799
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.48799 | $0.48799 |
| 10 | $0.37292 | $3.72920 |
| 25 | $0.33965 | $8.49125 |
| 50 | $0.30935 | $15.46750 |
| 100 | $0.28544 | $28.54400 |
| 300 | $0.25992 | $77.97600 |
| 500 | $0.23668 | $118.34000 |
| 1000 | $0.21821 | $218.21000 |
| 3000 | $0.19840 | $595.20000 |
| 5000 | $0.18038 | $901.90000 |
