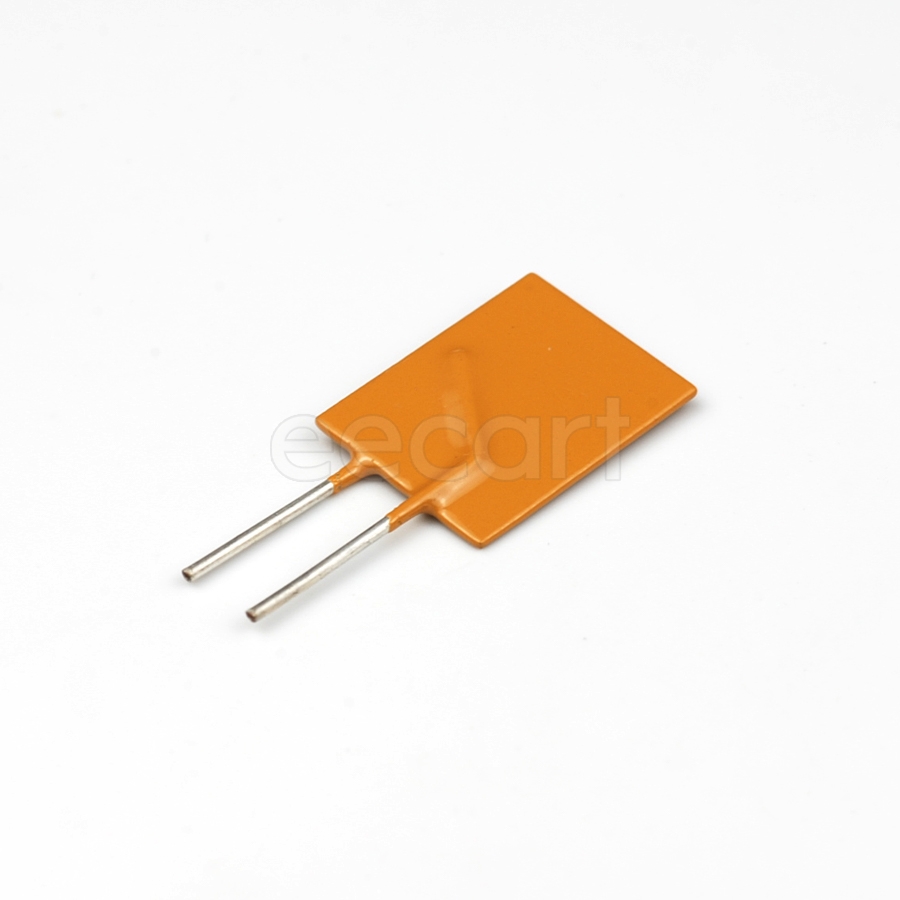

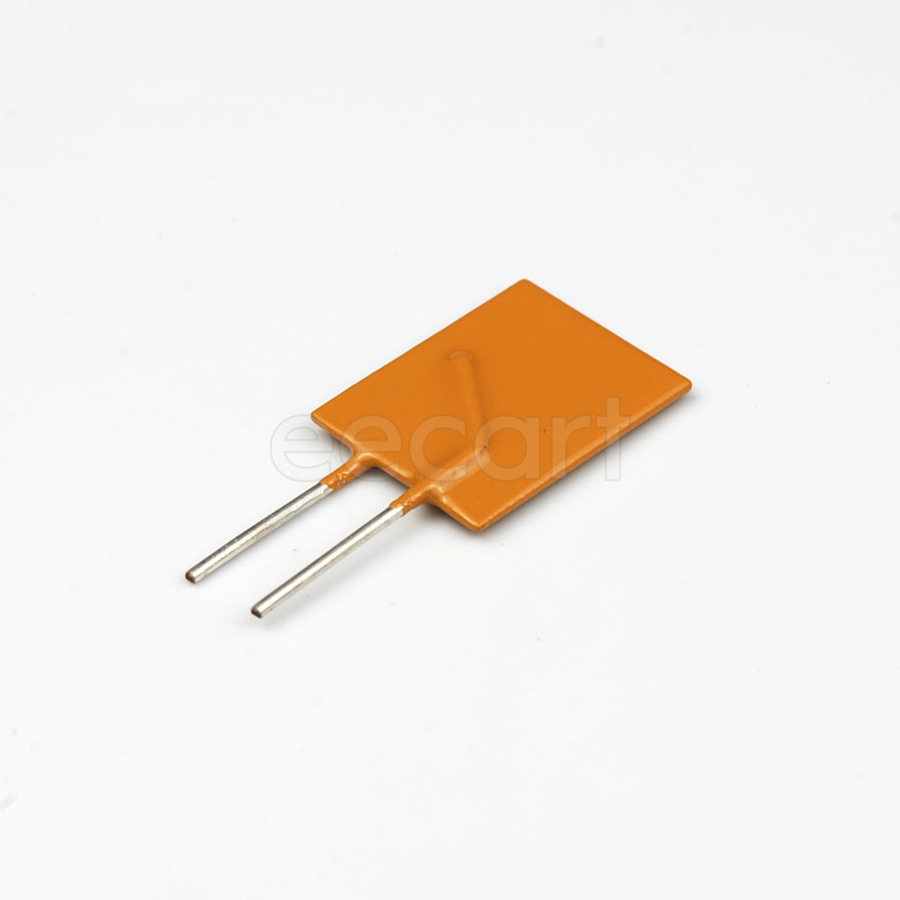

MF-RHT750-0
Manufacturer:
Bourns
Mfr.Part #:
MF-RHT750-0
Datasheet:
Description:
PTC Resettable Fuses 14.00mmL×3.00mmw×23.50mmH Through Hole Hold Current:7.5 A Voltage Rating:16 V Trip Current:13.1 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 16 V |
| Length | 31.1 mm |
| Width | 14 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 22 MΩ |
| Height | 3 mm |
| Voltage Rating | 16 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5.1 mm |
| REACH SVHC | No SVHC |
| Number of Terminals | 2 |
| Current Rating | 100 A |
| Max Current Rating | 100 A |
| Operating Supply Voltage | 16 V |
| Power Dissipation | 4.5 W |
| Hold Current | 7.5 A |
| Time to Trip | 7 s |
| Trip Current | 13.1 A |
| Wire/Cable Diameter | 810 µm |
| Schedule B | 8536100040 |
| Max Supply Voltage | 16 V |
| Packaging | Bulk |
| Lead Spacing | 2.9 mm |
| Height - Seated (Max) | 23.5 mm |
| Maximum Resistance 1 Hour (R1max) | 22 mΩ |
| Minimum Resistance Initial (Rmin) | 9.4 mΩ |
Stock: 2351
Distributors
pcbx
pcbxUnit Price$0.89503
Ext.Price$0.89503
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.89503 | $0.89503 |
| 10 | $0.68515 | $6.85150 |
| 25 | $0.62418 | $15.60450 |
| 50 | $0.56863 | $28.43150 |
| 100 | $0.52465 | $52.46500 |
| 300 | $0.47759 | $143.27700 |
| 500 | $0.43476 | $217.38000 |
| 1000 | $0.40071 | $400.71000 |
| 3000 | $0.36414 | $1092.42000 |
| 5000 | $0.33090 | $1654.50000 |
