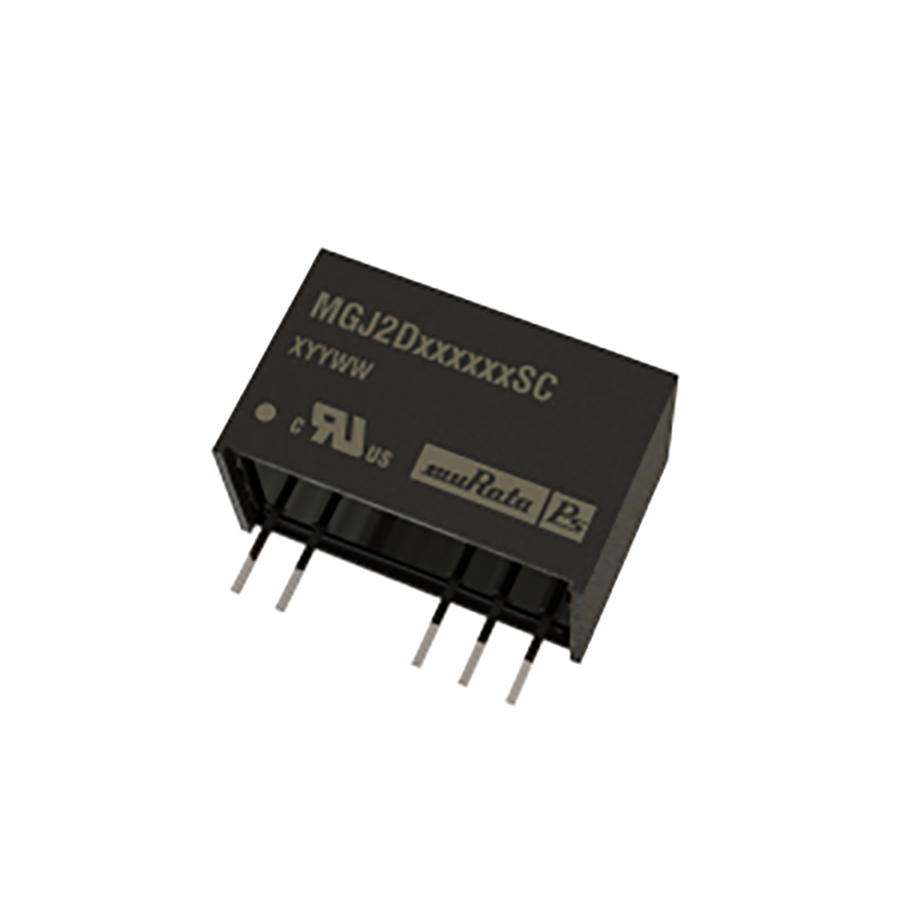

MGJ2D051509SC
Manufacturer:
Murata
Mfr.Part #:
MGJ2D051509SC
Datasheet:
Description:
DC to DC Converters 19.7mmL×10.0mmW×12.7mmH Through Hole Nominal Input Voltage:5 V Min Input Voltage:4.5 V Max Input Voltage:5.5 V 77.5 %
| Parameter | Value |
|---|---|
| Length | 19.558 mm |
| Width | 9.906 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 12.7 mm |
| Packaging | Tube |
| Depth | 12.65 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 4.3 g |
| Features | SCP |
| Min Input Voltage | 4.5 V |
| Output Current | 80 mA |
| Output Voltage | 15 V |
| Lifecycle Status | NRND (Last Updated: 1 year ago) |
| Max Power Dissipation | 2 W |
| Max Output Current | 40 mA |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 2 |
| Isolation Voltage | 5.2 kV |
| Output Power | 2 W |
| Current - Output 1 | 80 mA |
| Efficiency | 77.5 % |
| Voltage - Output 1 | 15 V |
| Max Input Voltage (DC) | 5.5 V |
| Nominal Input Voltage | 5 V |
| Max Output Power | 2 W |
| Min Input Voltage (DC) | 4.5 V |
| Current - Output 2 | 40 mA |
| Voltage - Output 2 | -8.7 V |
| Schedule B | 8542390000 |
| Output Current-Channel 1 | 80 mA |
| Output Current-Channel 2 | 40 mA |
| Output Voltage-Channel 1 | 15 V |
| Output Voltage-Channel 2 | -8.7 V |
Stock: 151
Distributors
pcbx
pcbxUnit Price$5.29376
Ext.Price$5.29376
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.29376 | $5.29376 |
| 10 | $5.23080 | $52.30800 |
| 25 | $5.17449 | $129.36225 |
| 50 | $5.04310 | $252.15500 |
| 100 | $4.79282 | $479.28200 |
| 300 | $4.47572 | $1342.71600 |
| 500 | $4.17964 | $2089.82000 |
| 1000 | $3.91685 | $3916.85000 |
