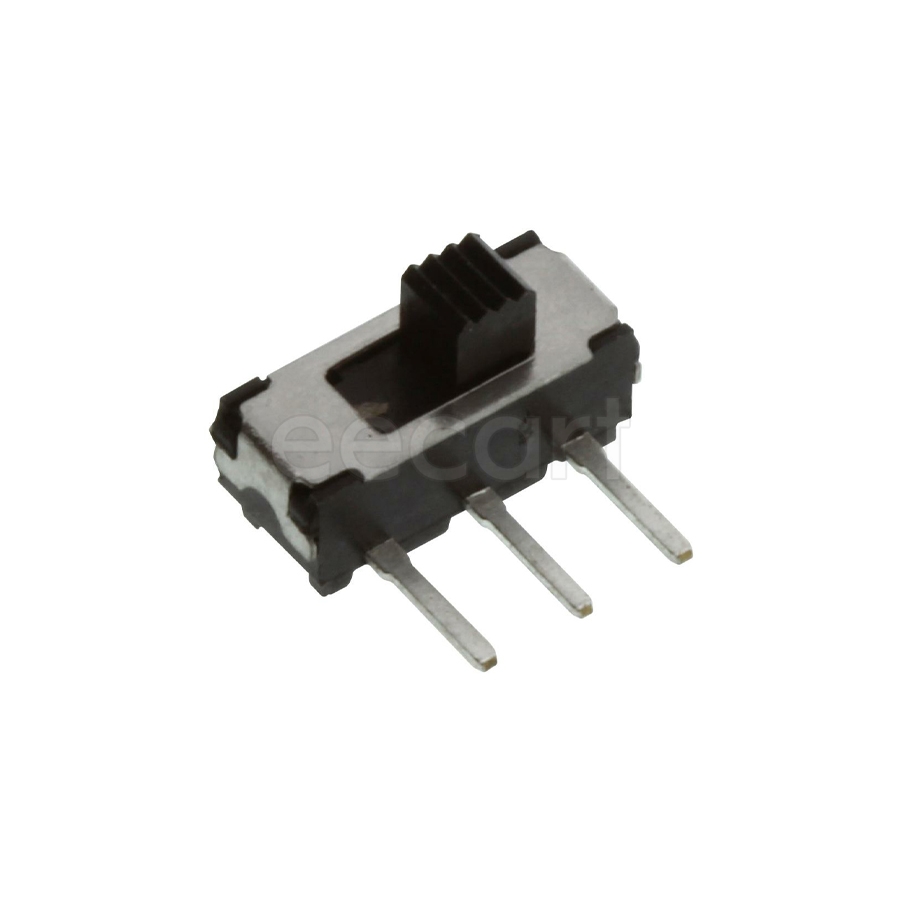

MHSS1105
Manufacturer:
Apem
Mfr.Part #:
MHSS1105
Datasheet:
Description:
Slide Switches Through Hole ON - ON SPDT Current Rating:300 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 6 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 6 V |
| Circuit Type | SPDT |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Silver |
| Current Rating | 300 mA |
| Max Voltage Rating (DC) | 6 V |
| Orientation | Right Angle |
| Actuator Length | 2 mm |
| Throw Configuration | SPDT |
| Contact Resistance | 60 mΩ |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 5 kcycles |
| Switch Travel | 2 mm |
| Actuator Material | Nylon, Polyamide |
| Contact Current Rating | 300 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 3034
Distributors
pcbx
pcbxUnit Price$0.40010
Ext.Price$0.40010
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40010 | $0.40010 |
| 10 | $0.39840 | $3.98400 |
| 25 | $0.38643 | $9.66075 |
| 50 | $0.37778 | $18.88900 |
| 100 | $0.36933 | $36.93300 |
| 300 | $0.33902 | $101.70600 |
| 500 | $0.31120 | $155.60000 |
| 1000 | $0.28127 | $281.27000 |
| 3000 | $0.26948 | $808.44000 |
| 5000 | $0.25819 | $1290.95000 |
