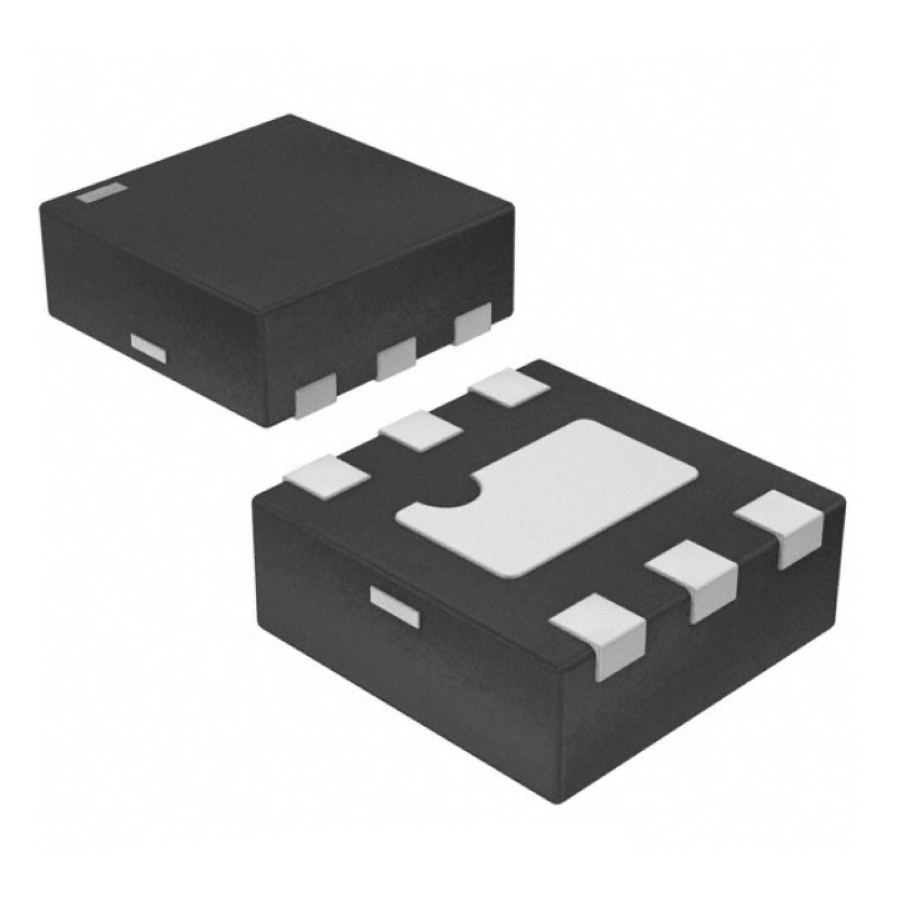

MIC2007YML-TR
Manufacturer:
Microchip
Mfr.Part #:
MIC2007YML-TR
Datasheet:
Description:
Power Switch ICs - Power Distribution MLF-6 SMD/SMT Turn-On Delay Time:1.5 ms Turn-Off Delay Time:700 µs 125 mΩ
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | High Side |
| Interface | On/Off |
| Output Current | 2 A |
| Output Voltage | 6 V |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Output Type | P-Channel |
| Max Supply Voltage | 5.5 V |
| Max Output Current | 2 A |
| Turn-On Delay Time | 1.5 ms |
| Turn-Off Delay Time | 700 µs |
| Output Configuration | High Side |
| Number of Outputs | 1 |
| Fault Protection | Over Temperature |
| Schedule B | 8542390000 |
| On Resistance (RON) | 125 mΩ |
| Ratio - Input:Output | 1:1 |
| Current Limit | 0.2 A to 2 A |
Stock: 6914
Distributors
pcbx
pcbxUnit Price$0.56340
Ext.Price$0.56340
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56340 | $0.56340 |
| 10 | $0.51750 | $5.17500 |
| 25 | $0.47534 | $11.88350 |
| 50 | $0.45302 | $22.65100 |
| 100 | $0.43174 | $43.17400 |
| 300 | $0.43174 | $129.52200 |
| 500 | $0.43174 | $215.87000 |
| 1000 | $0.43174 | $431.74000 |
| 3000 | $0.43174 | $1295.22000 |
| 5000 | $0.43174 | $2158.70000 |
