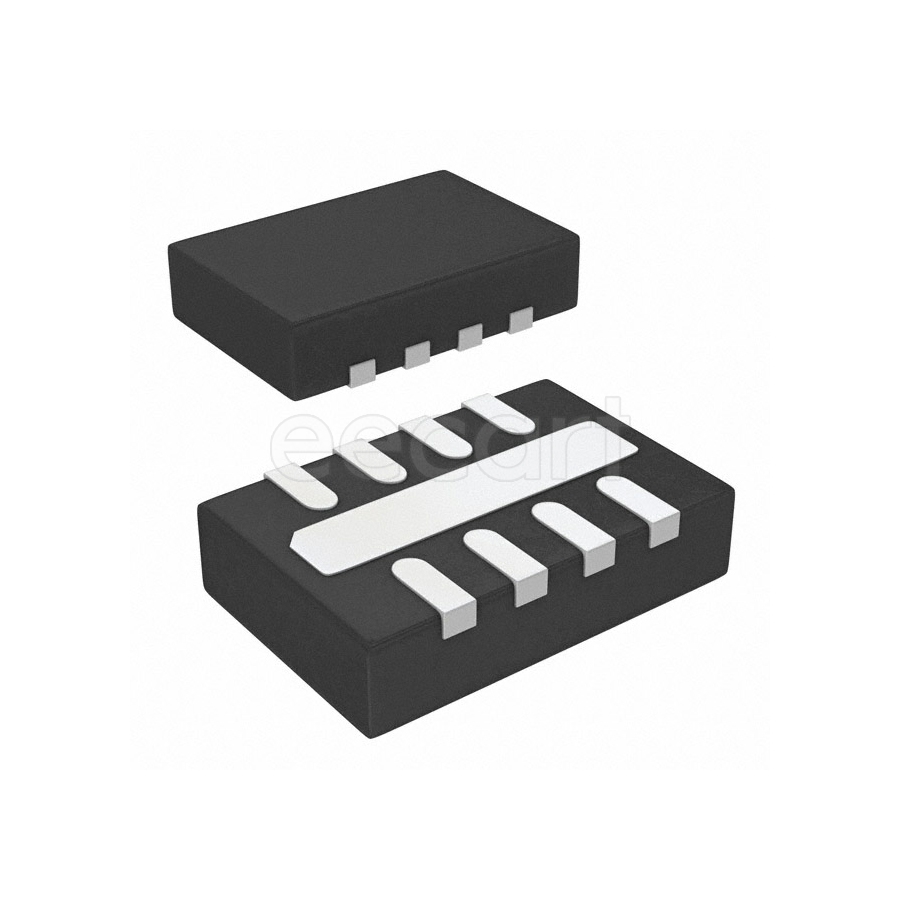

MIC2251YML-TR
Manufacturer:
Microchip
Mfr.Part #:
MIC2251YML-TR
Datasheet:
Description:
Voltage Regulators - Switching MLF-8 SMD/SMT Boost Adjustable 37 V
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 800 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Min Input Voltage | 2.5 V |
| Output Current | 40 mA |
| Output Voltage | 37 V |
| Output Type | Adjustable |
| Max Output Current | 2 A |
| Quiescent Current | 52 µA |
| Synchronous Rectifier | No |
| Output Configuration | Positive |
| Topology | Boost |
| Switching Frequency | 2.5 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Efficiency | 90 % |
| Min Output Voltage | 1.24 V |
| Max Output Voltage | 37 V |
| Schedule B | 8542390000 |
| Function | Step-Up |
Stock: 2067
Distributors
pcbx
pcbxUnit Price$0.70703
Ext.Price$0.70703
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70703 | $0.70703 |
| 10 | $0.64815 | $6.48150 |
| 25 | $0.59417 | $14.85425 |
| 50 | $0.56884 | $28.44200 |
| 100 | $0.54459 | $54.45900 |
| 300 | $0.54459 | $163.37700 |
| 500 | $0.54459 | $272.29500 |
| 1000 | $0.54459 | $544.59000 |
| 3000 | $0.54459 | $1633.77000 |
| 5000 | $0.54459 | $2722.95000 |
