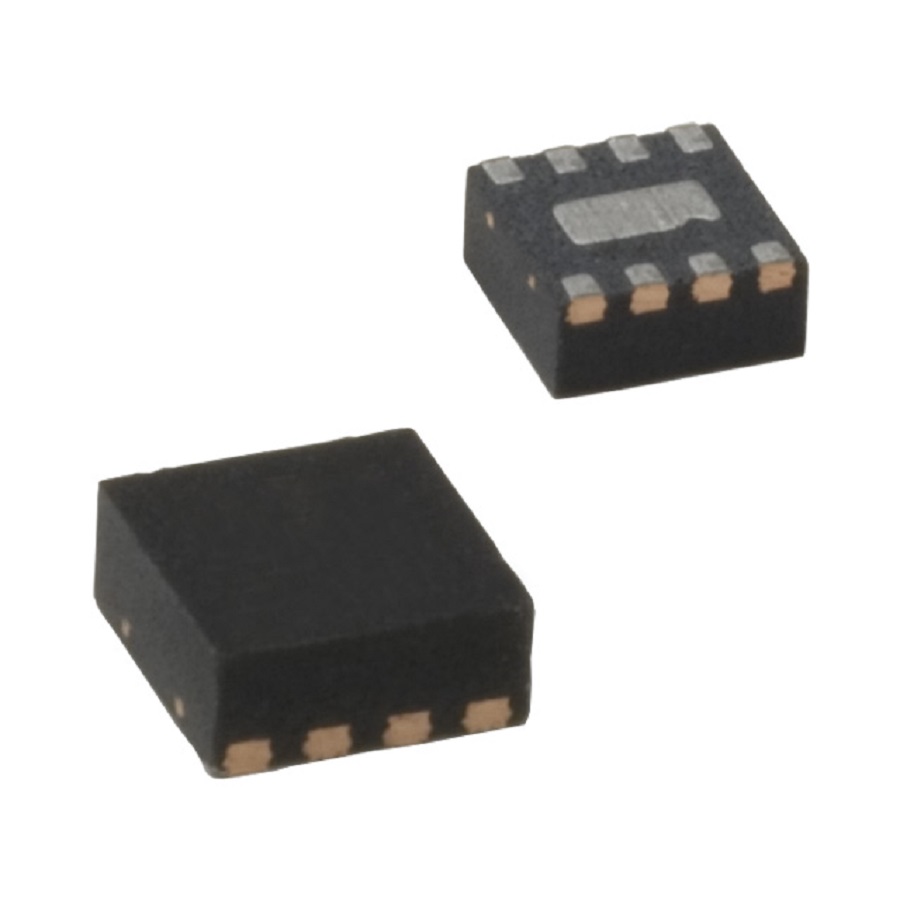

MIC2290YML-TR
Manufacturer:
Microchip
Mfr.Part #:
MIC2290YML-TR
Datasheet:
Description:
Voltage Regulators - Switching MLF-8 SMD/SMT Boost Adjustable 34 V
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 850 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Min Input Voltage | 2.5 V |
| Output Current | 750 mA |
| Output Voltage | 34 V |
| Output Type | Adjustable |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Min Supply Voltage | 2.5 V |
| Max Output Current | 750 mA |
| Synchronous Rectifier | No |
| Output Configuration | Positive |
| Topology | Boost |
| Switching Frequency | 1.2 MHz |
| Max Input Voltage | 10 V |
| Number of Outputs | 1 |
| Min Output Voltage | 2.5 V |
| Max Output Voltage | 34 V |
| Schedule B | 8542390000 |
| Function | Step-Up |
Stock: 2049
Distributors
pcbx
pcbxUnit Price$0.56340
Ext.Price$0.56340
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56340 | $0.56340 |
| 10 | $0.51750 | $5.17500 |
| 25 | $0.47534 | $11.88350 |
| 50 | $0.45302 | $22.65100 |
| 100 | $0.43174 | $43.17400 |
| 300 | $0.43174 | $129.52200 |
| 500 | $0.43174 | $215.87000 |
| 1000 | $0.43174 | $431.74000 |
| 3000 | $0.43174 | $1295.22000 |
| 5000 | $0.43174 | $2158.70000 |
